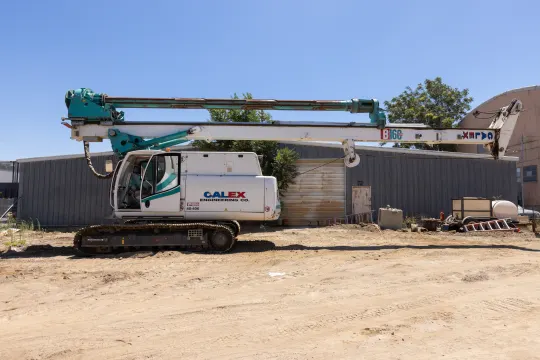

2016 Casagrande B160XP


  • Stock No.


  • Hours


  • Location

    Santa Clarita, CA

  • Est. Availability



  • H16 Rotary Head
  • 4 Section Round Locking Kelly Bars
  • Enclosed Cabin
  • A/C and Heat


  • Engine: Cummins QSB6.7 6.7L 225Hp I6 TurboD
  • EPA Tier 4
  • Drill Type: Rotary + CFA (Continuous Flight) Piling
  • Hydraulic System Relief: 5,076 psi
  • Hydraulic Tank Capacity: Hydraulic = 87 gal / Fuel = 74 gal
  • Emissions Urea Tank: 15 gal Capacity
  • Depth: 50 Meter Stroke (w/ Rotary Head)
  • Max Drill Speed: Drill = 32 RPM / Max Discharge Speed = 130 RPM
  • Micropiling Depth: Max Depth = 52 Ft / Main Winch = 35,969 lbs
  • Track Length/Width: Track Length =177 in / 24 in Width Triple Grouser
  • Operating Weight: 90,389 lbs

Inspection Summary

What's great

  • Clean and dry engine appearance; no active leaks seen
  • Easy startup with smooth idle; no unusual sounds heard and no smoke issues seen
  • Good forward and reverse function; no transmission hesitation, unusual noises, or vibrations observed
  • Clean hydraulics; no dried seepages or discoloration seen
  • Good appearance and rotation of drill components; no unusual sounds heard during operation
  • Smooth and quiet swing table rotation in both directions
  • No weld repairs or cracks seen on frame or cross members
  • Operator's cabin is in good condition; all switches and controls working, good function of displays with no error codes

What needs work

  • No site drilling performed at the time of inspection
  • Surface rust and wear seen on sprockets, idler edges, and rollers; noise from undercarriage heard during travel
  • Some scrapes and surface rust seen on lower counterweight; areas of cosmetic rust on unpainted and un-plated metals
