1975 Dravo 28
- Ships nationwide
- #A8585701
180

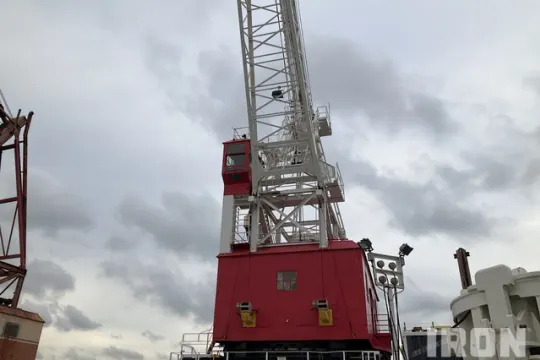

+177 more1975 (unverified) Dravo 28 80-Ton Jackup on 130' x 58' x 10' Barge
- Ships nationwide
- #A8585701
Asking Price$2,500,000
Est. Loan Payment
Price excludes taxes, fees, and shipping
No Payments For 90 Days
Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.
About this equipment
1975 (unverified) Dravo 28 80-Ton Jackup on 130' x 58' x 10' Barge Hours and condition are captured at the time of listing and are subject to change. Please contact a representative about this piece of equipment for an updated reading.
Seller Supplied Information: Seller states the this unit does not have legs installed, however will come with 110 ft of legs. Is a Lloyds classed vessel. Model: Dravo 28 S/N: BD-3022 Year: Assembled hoist and barge in 2022 Main Hoist: Dravo 28 3 drum hoist Swinger Motor: General Electric 27B618, type MD 410 AE 2, 45 hp, 230V, 525 rpm Main Hoist Motor: General Electric 27B611, type MD 416 AE2, series, 230V, 135 HP, 495-amp, 410 rpm Generator Engine: John Deere 6090HFG95 Generator: Magna Plus 432PSI6210, frame 432, 250 kW, 313 KVA, 277/480Y Volts, 376 Amps, 3 phase Auxiliary Generator Engine: Kubota V3600-T-BG-ET03, 61.7 hp Auxiliary Generator: Stamford PH44K1, 40 kW, 50 kVA, 208 Volts, 3 phase Boom: 138'-5" to the main, and 148'-5" to the aux. Capacity (jacked up): 80-ton main fall, 33-ton aux. fall Capacity (legs up): 51.5-ton main fall, 33-ton aux. fall Main Blocks: 8-part Aux. Block: 3-part Boom Wire: 1-1/8" 6x19 BRT IWRC EIPS (1x2800') Main Wire: 1-1/8" 6x19 BRT IWRC EIPS (1x2200') Aux. Wire: 1-1/8" 6x19 BRT IWRC EIPS (900') Tuggers: 2- Brayden PD12Cs, HPU motor: Baldor CH4115T, 50 HP, 230/460 volts, 118/59 amps, 1770 rpm, 3 phase HPU hydraulic pump: Parker PAVC100R522, 46.75 gpm,1000 psi Jack-Up Size: 130' x 58' x 10' Year: Hull was originally built in 1975 and was modified in 2002 to fit the jacking legs Builder: Harve De Grave Shipbuilding and Manufacturing CO Hull fuel capacity: 30,000 gallons, Four spud wells to fit 71" diameter pipe Jack type: Four Delong D. Type, 522-ton, airbag jacks, with air powered stroking cylinders, Power Source: Two INGERSOLL-RAND XHP1170 compressors, 1170 cfm each, each powered by a Cat C15 Please see the specifications documents below.
Features
AI-Generated: Verify machine specs, features, and operability prior to purchasing.
(4) Delong D-Type 522 ton Jacks
Specifications
AI-Generated: Verify machine specs, features, and operability prior to purchasing.
Serial Number / VIN: No serial number or manufacturer’s identifying number found. This unit may be difficult to export.
Safety Certification Label: There is a safety certification label with a date of 6/18/14
Load Chart: Yes
Glass: No visible damage
Load Moment Indicator: Not operationally checked with a load., cranesmart
Load Charts: Posted on cab wall
Engine: 2012 US EPA Label
Starter: Not operationally checked
Oil Leaks: No dripping leaks
Fuel Leaks: No dripping leaks
Cooling System Leaks: No dripping leaks
Boom Length: 138 ft 5 in overall length
