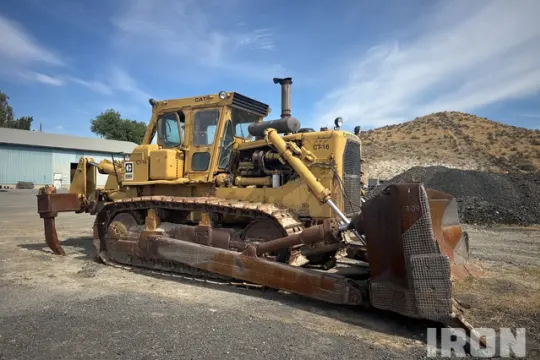

1977 Caterpillar D9H

Enclosed Cab

180 in Wide U-Blade w/ Single Tilt

4 Cylinder Multi-Shank Ripper

27 in Single Grouser Track Shoes

Serial Number / VIN: 90V05281

CE Mark: No CE mark found

Hour Meter / Odometer: 8375 hrs, Meter inoperable

Sheet Metal (fiberglass) Condition: Damaged cab window hinge, cracks, weld repairs

Exterior Lights: Not operational

Horn: Inoperable

Seat Belts: Operational

Safety Lock Out/Stop: Operational

Current Safety Manual: No

Current Operator/Maintenance Manual: No

Engine Oil Pressure: The gauge registers in the operating range.

Gauges: Hydraulic fluid temp, water temp & water pressure gauges are inoperable

Limited Function Check: The main components are in place and operational as noted.

Engine: No US EPA Label Present

Blow-by (subjective visual observation): Minor

Starter: Operational

Oil Leaks: No dripping leaks

Fuel Leaks: No dripping leaks

Cooling System Leaks: No dripping leaks

Limited Function Check: The engine started and ran.

Transmission: Operational

Drive Motors: Dripping Leak

Final Drives: Dripping Leak

Limited Function Check (Drivetrain-Track): The drivetrain was operational without a load.

Hoses (Hydraulics): Cracking, wear

Blade Lift Cylinders: Dripping leak on the left cylinder, Dripping leak on the right cylinder, Heavy pin and bushing movement, Drift down

Blade Tilt Cylinders: Heavy pin and bushing movement

Limited Function Check: The hydraulic system was operational. Hydraulics will not hold position on blade.

Tilt Linkage Pins and Bushings: Heavy movement

Angle Linkage Pins and Bushings: Heavy movement

Blade Trunnions/bushings: Heavy movement

Limited Function Check (dozer): The main components were operational with movement as indicated.

Left Track Tensioner: Covered

Left Grouser Height: 66 mm

Left Track Bushings: Bushings have not been turned

Right Grouser Height: 67 mm

Right Track Bushings: Bushings have not been turned
