2004 Gradall XL4100 II

  • 12834 hours
  • Ships nationwide
  • #A1392533
130
image+127 more

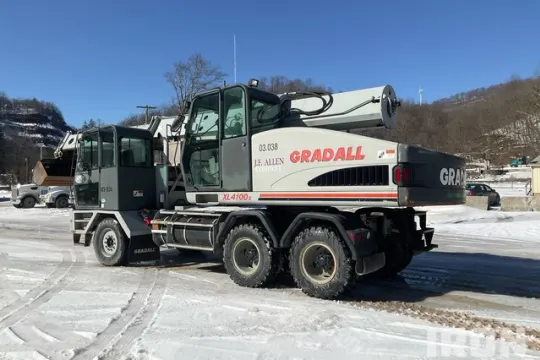

2004 Gradall XL4100 II 6x4 Highway Wheeled Excavator

  • 12834 hours
  • Ships nationwide
  • #A1392533
Asking Price$45,000
Est. Loan Payment

Price excludes taxes, fees, and shipping

  • No Payments For 90 Days

    Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

  • IronClad Assurance

    IronClad Assurance

    Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.

About this equipment

2004 Gradall XL4100 II 6x4 Highway Wheeled Excavator Hours and condition are captured at the time of listing and are subject to change. Please contact a representative about this piece of equipment for an updated reading.

***Title may not be available for up to 25 business days after auction***

Features

AI-Generated: Verify machine specs, features, and operability prior to purchasing.

  • Eaton Fuller 8 Speed Manual Transmission

  • 2832.2 hrs Carrier Engine

  • Mercedes-Benz 6 Cylinder 388 cid Diesel Carrier Engine

  • 20 ft - 29 ft Extendable Stick

  • Manual Quick Coupler

  • 66 in Cleanup Bucket

Specifications

AI-Generated: Verify machine specs, features, and operability prior to purchasing.

  • Engine Power: 131 hp

  • Displacement: 276 cu in

  • Operating Weight: 41,670 lbs

  • Fuel Capacity: 80 gal

  • Max Digging Depth: 19.9 ft

  • Max Reach Along Ground: 30 ft

  • Boom/Stick Option (HEX) 1: Standard Boom/Stick

  • Transport Width: 8.4 ft

  • Transport Height: 11 ft

  • Wheelbase: 9 ft

  • Ground Clearance: 1.1 ft

  • CE Mark: No CE mark found

  • Serial Number / VIN: 4100099

  • Exterior Lights: Operational

  • Hour Meter / Odometer: 22601 mi

  • Travel Alarm: Operational

  • Horn: Operational

  • Seat Belts: Not equipped

  • Safety Lock Out/Stop: Operational

  • Swing Brake: Operational

  • Current Safety Manual: No

  • Current Operator/Maintenance Manual: No

  • Lower/Carrier Engine Hours: 2832.2 hrs Carrier Engine

  • Engine Oil Pressure: The gauge registers in the operating range.

  • Warning Lights: Operational

  • Gauges: Operational

  • Heater: Operational, The fan speed function is inoperable.

  • Limited Function Check: The main components are in place and operational as noted.

  • Blow-by (subjective visual observation): No noticeable vapor or pressure

  • Starter: Operational

  • Oil Leaks: No dripping leaks

  • Fuel Leaks: No dripping leaks

  • Cooling System Leaks: No dripping leaks

  • Limited Function Check: The engine started and ran.

  • Transmission: Operational

  • Clutch: Engages

  • PTO: Operational

  • Limited Function Check: The drivetrain was operational.

  • Glass: No visible damage

  • Oil Pressure: The fault indicator shuts off after the engine oil pressure rises.

  • Heater: Operational

  • Limited Function Check: The hydraulic system was operational.

  • Brake Type: Hydraulic

  • Limited Function Check - Brakes: The brake system functioned, stopping and holding the machine.

  • Limited Function Check: The main components were operational when checked without a load.

  • Tire Size: 385/65R22.5 Front tires, 10.00-20 Rear tires, LF Goodyear, LR Samson, RR Samson, RF Goodyear

  • Tread Depth: LF 12 /32", LR 14 /32", LMO 14 /32", LRI 14 /32", LRO 14 /32", RRI 14 /32", RRO 14 /32", RR 13 /32", RF 10 /32"

  • Limited Function Check: The main components were operational in a limited check.

  • Quick Coupler: Not operationally checked

  • date of analysis: Feb 16, 2026

  • Silicon: 0.86 PPM

  • Tin: 0.46 PPM

  • Silver: 0 PPM

  • Aluminum: 0.74 PPM

  • Chromium: 0.62 PPM

  • Lead: 0.71 PPM

  • Copper: 0.56 PPM

  • Nickel: 0.13 PPM

  • Iron: 10.25 PPM

  • Glycol: NEG

  • Water: NEG

  • Fuel: <5%

  • Hour Meter / Odometer: 12834.1 hrs

Digital Glovebox

For your convenience, we've included these documents free to download so you can make the best decision.


Close-up detailed photos

Inspection Report

VIEW
Listings may picture specialty attachments not included in the sale. If you have questions about machine configuration, contact our sales team.
