2005 Caterpillar 740C

25640 hours
Ships nationwide
USA
#A7601149

106

+103 more

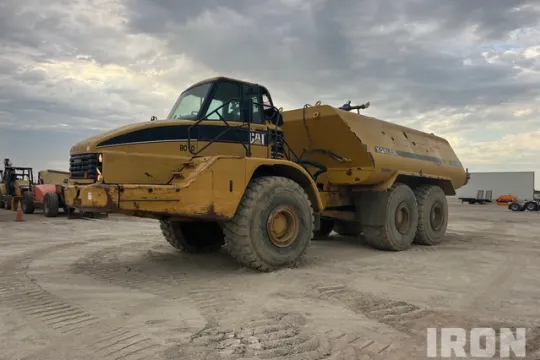

2005 Cat 740C 8000 gal 6x6 Articulated Water Truck

25640 hours
Ships nationwide
United States
#A7601149

No Payments For 90 Days
Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.
IronClad Assurance
Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.

About this equipment

This 2005 Caterpillar 740C articulated truck is equipped with features well-suited for demanding site conditions. The enclosed cab with air conditioning ensures operator comfort in various environments. It rides on robust 29.5R25 tires designed to handle tough terrain reliably. Additionally, this unit is outfitted with a Klein tank, hydraulic driven water pump, rear and side sprays, and a ground fill stand pipe, making it ideal for dust control and other water-related applications in construction and mining sectors. With 25,640 hours of operation, this Caterpillar 740C is a tested performer ready to support your project needs.

Listings may picture attachments not included in the sale. Contact our sales team to confirm features, specs, and machine configuration.

Features

Enclosed Cab
Air Conditioner
29.5R25 Tires
Klein Tank
Rear Spray
Side Spray
Hydraulic Driven Water Pump
Ground Fill Stand Pipe

Specifications

Engine Power: 453 hp
Net Power: 425 hp
Gross Power: 453 hp
Displacement: 928 cu in
Fuel Capacity: 132 gal
Operating Weight: 65476 lbs
Max Payload: 31.1 ton
Top Speed - Loaded: 34.2 mph
Tire Size: 29.5R25
Overall Length: 36.1 ft
Overall Width: 11.5 ft
Overall Height: 12.4 ft
Dump Height: 22.7 ft
Dump Ground Clearance: 2 ft
Serial Number / VIN: CAT00740CAXM02115
CE Mark: No CE mark found
Hour Meter / Odometer: 25640 hrs
Exterior Lights: Operational, Some not operational, 3 lights are not operational
Travel Alarm: Operational
Horn: Inoperable
Seat Belts: Operational
Current Safety Manual: No
Current Operator/Maintenance Manual: No
Oil Pressure: No oil pressure indicator
Warning Lights: Operational
Gauges: Operational
Air Conditioner: Operational
Heater: Not operationally checked
Limited Function Check: The main components are in place and operational as noted.
Engine: No US EPA Label Present
A/C Compressor: Operational
Blow-by (subjective visual observation): Visible
Starter: Operational
Oil Leaks: No dripping leaks
Fuel Leaks: No dripping leaks
Cooling System Leaks: No dripping leaks
Limited Function Check: The engine started and ran.
Transmission: Operational
Limited Function Check - Scraper: The drivetrain was operational without a load.
Hydraulic Motors: Not operationally checked
Limited Function Check: The hydraulic system was operational.
Limited Function Check: The main chassis components functioned during a limited check.
Park Brake: Stopped from a slow roll
Limited Function Check - Brakes: The brake system functioned, stopping and holding the machine.
Tire Condition: Radial
Water Pump: Not operationally checked
Water Valves: Not operationally checked
Limited Function Check: The components that could be checked functioned with wear.

Digital Glovebox

For your convenience, we've included these documents free to download so you can make the best decision.

Close-up detailed photos

Inspection Report

VIEW
