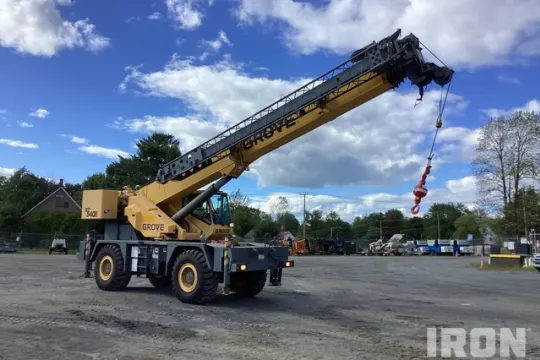

2008 Grove RT540E

2008 US EPA Label

Cummins 6 Cylinder 6.7 L Diesel Engine

32 ft Minimum 102 ft Maximum Boom Length

Auxiliary Hoist

26 ft to Swingaway Jib

4 Sheave Hook Block

240 lb 15 ton Capacity Overhaul Ball

9500 lb Counterweight

Serial Number / VIN: 228783

CE Mark: No CE mark found

Hour Meter / Odometer: 7732 hrs

Exterior Lights: Operational

Safety Certification Label: There was no safety certification label located on the machine.

Safety Certification Report: Safety Certification Report Not Available

Load Chart: Yes

Travel Alarm: Operational

Horn: Operational

Seat Belts: Operational

Safety Lock Out/Stop: Operational

Current Safety Manual: Yes

Current Operator/Maintenance Manual: Yes

Glass: No visible damage

Anti Two Block: Operational

Oil Pressure: The gauge registers in the operating range.

Warning Lights: Operational

Gauges: Operational

Air Conditioner: Inoperable

Heater: Operational

Limited Function Check: The main components are in place and operational as noted.

A/C Compressor: Belt missing

Blow-by (subjective visual observation): Minor

Starter: Operational

Oil Leaks: No dripping leaks

Fuel Leaks: No dripping leaks

Cooling System Leaks: No dripping leaks

Limited Function Check: The engine started and ran.

Transmission: Operational

Limited Function Check: The drivetrain was operational.

Lift Cylinders: Seeping

Limited Function Check: The hydraulic system was operational.

Park Brake: Held against power

Limited Function Check - Brakes: The brake system functioned, stopping and holding the machine.

Tire Size: 20.5-25 Front tires, 20.5-25 Rear tires, LF Titan, LR Titan, RR Titan, RF Titan

Limited Function Check: The main chassis components were operational in a limited check.

Outrigger Cylinders: Left front seepage

Limited Function Check: The main crane components functioned when checked without a load.
