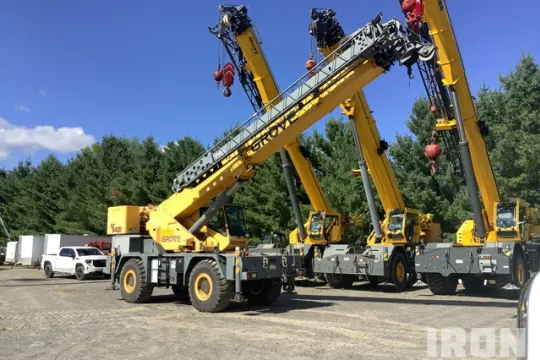

2008 Grove RT540E

Air Conditioner

Load Moment Indicator

2008 US EPA Label

Cummins 6 Cylinder Diesel Engine

32 ft Minimum 102 ft Maximum Boom Length

Auxiliary Hoist

Rooster Sheave

26 ft to 45 ft Extendable Swingaway Offset Jib

588 lb 40 ton Capacity Johnson 3 Sheave Hook Block

354 lb 7.5 lb Capacity Overhaul Ball

9490 lb Counterweight

Serial Number / VIN: 228135

Hour Meter / Odometer: 8190 hrs

Exterior Lights: Operational

Safety Certification Label: Safety Certification Label not legible.

Safety Certification Report: Safety Certification Report Not Available

Load Chart: Yes

Travel Alarm: Operational

Horn: Operational

Seat Belts: Operational

Safety Lock Out/Stop: Operational

Current Safety Manual: Yes

Current Operator/Maintenance Manual: Yes

Glass: No visible damage

Load Moment Indicator: Operational

Anti Two Block: Operational

Oil Pressure: The gauge registers in the operating range.

Warning Lights: Operational

Gauges: Operational

Air Conditioner: Operational

Heater: Operational

Limited Function Check: The main components are in place and operational as noted.

A/C Compressor: Operational

Blow-by (subjective visual observation): Minor

Starter: Operational

Oil Leaks: No dripping leaks

Fuel Leaks: No dripping leaks

Cooling System Leaks: No dripping leaks

Limited Function Check: The engine started and ran.

Transmission: Operational

Final Drives: Left rear seepage

Limited Function Check: The drivetrain was operational.

Limited Function Check: The hydraulic system was operational.

Brake Type: Hydraulic

Park Brake: Held against power

Limited Function Check - Brakes: The brake system functioned, stopping and holding the machine.

Tire Size: All of the tires are the same size, 20.5-25 Front tires, 20.5-25 Rear tires

Limited Function Check: The main chassis components were operational in a limited check.

Limited Function Check: The main crane components functioned when checked without a load.
