2011 Caterpillar D7E LGP

  • 24347 hours
  • Ships nationwide
  • #A2668715
85
image+82 more

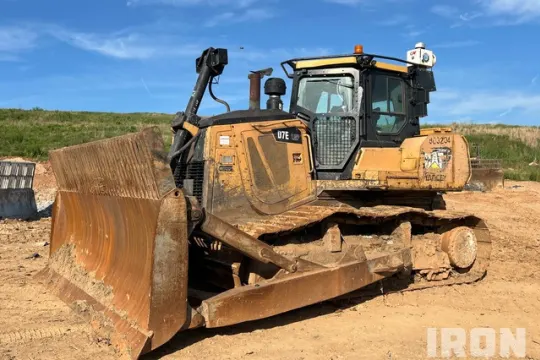

2011 Cat D7E LGP Crawler Dozer - Reconditioned 2021

  • 24347 hours
  • Ships nationwide
  • #A2668715

No longer available

View more Bulldozers
  • IronClad Assurance

    IronClad Assurance

    Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.

  • No Payments For 90 Days

    Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

About this equipment

2011 Cat D7E LGP Crawler Dozer - Reconditioned 2021 The last reported number of hours was 24347. Hours and condition are captured at the time of listing and are subject to change. Please contact a representative about this piece of equipment for an updated reading.

Features

AI-Generated: Verify machine specs, features, and operability prior to purchasing.

  • Enclosed Cab

  • Air Conditioner

  • Rear View Camera

  • Fire Suppression System

  • 173 in Wide PAT Blade

  • 30 in Single Grouser Track Shoes

Specifications

AI-Generated: Verify machine specs, features, and operability prior to purchasing.

  • Engine Power: 235 hp

  • Displacement: 567 cu in

  • Operating Weight: 57,100 lbs

  • Fuel Capacity: 101.5 gallons

  • Blade Capacity: 5.7 yd³

  • Blade Width: 13.1 ft

  • Ground Clearance: 1.2 ft

  • Track Width: 30 in

  • Transmission Type: Electric drive

  • Maximum Forward Speed: 6.2 mph

  • Maximum Reverse Speed: 7.7 mph

  • Serial Number / VIN: TJA00459

  • CE Mark: No CE mark found

  • Hour Meter / Odometer: 24347 hrs

  • Exterior Lights: Some not operational, Left rear top light. lights are not operational

  • Travel Alarm: Operational

  • Horn: Operational

  • Seat Belts: Operational

  • Current Safety Manual: No

  • Current Operator/Maintenance Manual: No

  • Engine Oil Pressure: The gauge registers in the operating range.

  • Warning Lights: Operational, Coolant pump low. Exhaust temperature light. Low fuel. light stays on

  • Gauges: Operational

  • Air Conditioner: Operational, Does not blow strong.blower fan is noticeably loud. Missing panel.

  • Heater: Operational

  • Limited Function Check: The main components are in place and operational as noted.

  • Engine: US EPA Label not legible

  • A/C Compressor: Operational

  • Blow-by (subjective visual observation): Significant

  • Starter: Operational

  • Radiator: Coolant level low. This machine overheats under load

  • Oil Leaks: Bottom of engine is wet with residue.

  • Fuel Leaks: No dripping leaks

  • Cooling System Leaks: Underneath radiator is wet. Unable to fully access to verify.

  • Limited Function Check: After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting.

  • Transmission: Operational, Operational, unable to fully access to verify leaks. Underneath machine is dripping leak.

  • Drive Motors: Seepage from outside panel on right side.

  • Limited Function Check (Drivetrain-Track): The drivetrain was operational without a load.

  • Pumps (Hydraulics): Minor seepage.

  • Valves: Minor seepage.

  • Limited Function Check: The hydraulic system was operational.

  • Blade Cutting Edge Condition: Dull.

  • Push Arm Pivot/C-FrameTrunnions: Shims remaining

  • Tilt Linkage Pins and Bushings: Heavy movement

  • Blade Trunnions/bushings: Heavy movement, Shims remaining

  • Limited Function Check (dozer): The main components were operational in a limited check.

  • Pivot Shafts: Unable to verify due to heavy buildup.

  • Equalizer Bar Pivot Points: Unable to verify due to heavy build up.

  • Left Grouser Height: 44 mm

  • Left Track Bushings: Bushings have not been turned

  • Right Grouser Height: 45 mm

  • Right Track Bushings: Bushings have not been turned

  • date of analysis: Jun 09, 2026

  • Silicon: 9.64 PPM

  • Tin: 0.7 PPM

  • Silver: 0 PPM

  • Aluminum: 0.96 PPM

  • Chromium: 0.07 PPM

  • Lead: 1.08 PPM

  • Copper: 0.65 PPM

  • Nickel: 0.75 PPM

  • Iron: 7.85 PPM

  • Glycol: NEG

  • Water: NEG

  • Fuel: <5%

  • date of analysis: Jun 09, 2026

  • Silicon: 0 PPM

  • Tin: 0.4 PPM

  • Silver: 0.01 PPM

  • Aluminum: 0 PPM

  • Chromium: 0 PPM

  • Lead: 1.11 PPM

  • Copper: 0.19 PPM

  • Nickel: 0.54 PPM

  • Iron: 0 PPM

  • Glycol: N/A

  • Water: N/A

  • Fuel: <5%

Digital Glovebox

For your convenience, we've included these documents free to download so you can make the best decision.


Close-up detailed photos

Inspection Report

VIEW
Listings may picture specialty attachments not included in the sale. If you have questions about machine configuration, contact our sales team.
