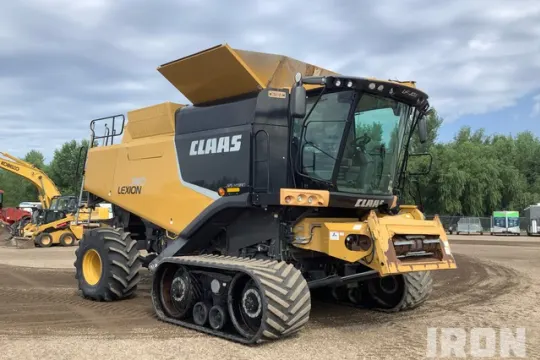

2012 Claas Lexion 740TT 4x4 Combine Harvester

3333 hours
Ships nationwide
United States
#B7879449

IronClad Assurance
Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.
No Payments For 90 Days
Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

About this equipment

The 2012 Claas Lexion 740TT is a robust piece of forestry equipment tailored for extensive harvesting functions. This unit features an advanced hydrostatic drive that enhances maneuverability and a reversible feeder with auto header height control, ensuring adaptable operation across varying crop conditions. It is equipped with a single rotor system augmented by a 24 ft auger, grain tank extensions, and self-leveling sieves designed for efficient throughput and simplified fieldwork. Noteworthy additions to this model include a rock trap, which minimizes the risk of damage from debris, and a chaff spreader coupled with a chopper to better manage residue. The machine also comes fitted with high-intensity discharge (HID) lights, providing improved visibility in low-light conditions. With 3333 total hours and 2145 separator hours showing, it promises significant remaining service life, bolstered by a 2011 US EPA label, ensuring compliance with emission standards.

Listings may picture attachments not included in the sale. Contact our sales team to confirm features, specs, and machine configuration.

Features

2145 Separator Hours Showing
Air Conditioner
Hydrostatic Drive
Reverser
Variable Speed Reel
Auto Header Height Control
Fore & Aft
2011 US EPA Label
Rock Trap
Single Rotor
24 ft Auger
Lateral Tilt Feederhouse
Grain Tank Extensions
Self-Leveling Sieves
Chaff Spreader
Chopper
HID Lights
29LR26 Rear Tires

Specifications

Engine Power: 360 hp
Displacement: 512 cu in
Fuel Capacity: 211 gallons
Track Width: 30 inches
Operating Weight: 36,376 lbs
Grain Tank Capacity: 330 bu
Unloading Speed: 3.3 bu/sec
Maximum Speed: 25 mph
Harvesting Width: 25 ft
Serial Number / VIN: C4800378
Hour Meter / Odometer: 3333 hrs
Exterior Lights: Operational
Horn: Operational
Seat Belts: Operational
Current Safety Manual: No
Current Operator/Maintenance Manual: No
Engine Oil Pressure: The fault indicator shuts off after the engine oil pressure rises.
Warning Lights: Operational
Gauges: Operational
Air Conditioner: Operational
Heater: Operational
Limited Function Check: The main components are in place and operational as noted.
Engine: 2011 US EPA Label
A/C Compressor: Operational
Blow-by (subjective visual observation): Minor
Starter: Operational
Oil Leaks: No dripping leaks
Limited Function Check: The engine started and ran.
Limited Function Check: The drivetrain was operational.
Pumps (Hydraulics): Dripping leak
Auxiliary Hydraulic Plumbing: Not operationally checked, Front
Limited Function Check: The hydraulic system was operational.
Safety Shields and Inspection Panels: No visible damage
Brake Type: Mechanical, Hydrostatic
Brake Lines/Hoses: Not operationally checked
Park Brake: Stopped the machine while rolling
Limited Function Check - Brakes: The brake system functioned, stopping and holding the machine.
Automatic Lube System: Yes
Grouser Height Measurement : Left side: 34 mm, Right side: 34 mm
Rubber Belt Drive Lugs: No visible damage
Track Tensioners: Operational
