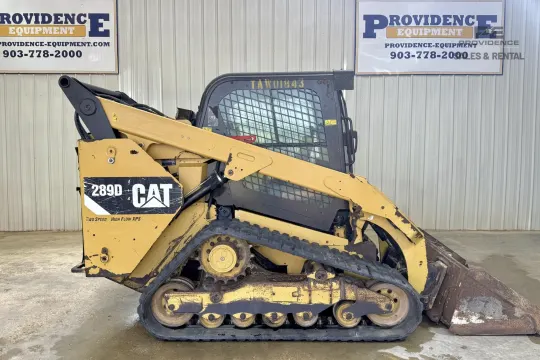

2014 CATERPILLAR 289D
- 3187 hours
- Ships nationwide
- #A1619733
+37 more2014 CATERPILLAR 289D
- 3187 hours
- Ships nationwide
- #A1619733
About this equipment
Machine Highlights Year: 2014 Make: Caterpillar Model: 289D XHP Cab AC/Heat Joystick Controls High Flow 72HP Joystick Controls 32GPM Tipping Load: 7,600LBS Operating Weight: 10,533LBS Hours: 3187 Serial Number: CAT0289DKTAW01843 Engine: Make: CAT Model: C3.3B DIT (turbo) Net Power: 72.90 HP Gross Power: 74.30 HP Gross Power SAE J1995: 74.30 HP Net Power SAE 1349: 72.90 HP Displacement: 203 cu. in. Bore: 3.70” Stroke: 4.70” Specifications: Operating Capacities-50% Tipping Load: 3800 lbs. Operating Capacities-35% Tipping Load: 2660 lbs. Ground Contact Area: 2015 in2 Ground Pressure: 5.20 Psi Tipping Load: 7600 lbs. Breakout Force, Tilt Cylinder: 7291 lbs. Operating Weight: 10,533 lbs. Drive Train: Travel Speed (Forward or Reverse) One Speed: 4.5 mph Dimensions: Length of Track on Ground: 64.20” Overall Length- Track: 83.80 “ Length with Bucket on Ground: 146.20” Length w/o Bucket: 117.90” Height to Top of Cab: 83.20” Width: 76” Max. Overall Height: 158.10” Bucket Pin Height at Max. Lift: 125.10” Bucket Pin Height at Carry Position: 7.50” Reach at Max. Left and Dump: 30” Clearance at Max. Lift and Dump: 94” Ground Clearance: 8.90” Departure Angle: 33 degrees Turning Radius from Center-Coupler: 55.50” Turning Radius from Center-Bucket: 88.80” Max. Reach with Arms Parallel to Ground: 50” Rack Back Angle at Max. Height: 84 degrees Bucket Pin Reach at Max. Lift: 14.50” Hydraulic System: High Flow: 32GPM Standard-Hydraulic Power (calculated): 44 HP Service Refill Capacities: Cooling System: 3.70 gal Engine Crankcase: 3 gal Fuel Tank: 24.80 gal Hydraulic System: 13.70 gal Hydraulic Tank: 10.30 gal 2014 CAT 289D CAB TRACK SKID STEER LOADER. AC/HEAT, JOYSTICK CONTROLS, 2 SPEED, HIGH FLOW, 72HP, TIPPING LOAD OF 7,600LBS, AND AN OPERATING WEIGHT OF 10,533LBS! SE HABLA ESPAÑOL! FINANCING AVAILABLE! PLEASE CALL US WITH ANY QUESTIONS! ASK ABOUT OUR REASONABLE SHIPPING RATES!
Features
Enclosed Cab with HVAC
Advanced Display with Backup Camera
Electro-hydraulic Joystick Controls
Heated Air Suspension Seat (Optional)
Two Speed Travel
High Flow XPS Hydraulic System (Optional)
Automatic Ride Control
Sealed and Pressurized Cab for Reduced Noise and Dust
Self-Leveling Bucket Feature
LED Work Lights (Optional)
AM/FM Radio with Bluetooth (Optional)
Anti-Theft System with Keyless Start
Product Link Telematics for Machine Monitoring
Standard Flow Auxiliary Hydraulics
Quick Coupler for Easy Attachment Changes
Specifications
Bucket : Yes
Bucket Type : Multi-Purpose
Fuel Capacity : 24.9 gal
Operating Weight : 10,533.7 lb
Hydraulic High Flow : Yes
Tipping Load : 7,600 lb
Ground Pressure : 5.2 psi
ROPS : Enclosed
A/C : Yes
Heater : Yes
Two-Speed : Yes
Travel Speed : 4.5 mph
Travel Speed - 2-Speed Option : 7 mph
Ground Clearance : 8.9 in
Length w/o Bucket : 117.9 in
Length with Bucket : 146.2 in
Height to Top of ROPS : 84 in
Width w/o bucket : 78 in
Horsepower : 72 HP
Shipping Length : 118 in
Shipping Width : 78 in
Shipping Height : 84 in
Shipping Weight : 10,533.7 lb
