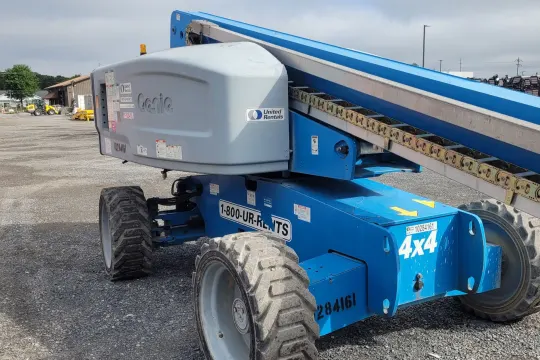

2014 Genie S-60X
- 5479 hours
- Ships nationwide
- #A1748293
+10 more2014 Genie S-60X
- 5479 hours
- Ships nationwide
- #A1748293
Warranty Included
No longer available
About this equipment
The 60' telescopic boom lift for sale is perfect for construction, mechanical contracting, painting, glazing, electrical work and industrial maintenance. With advanced maneuverability and a narrow turn radius, you can steer in any direction - even while the platform is extended. The hydrostatic drive and positive traction make driving the boom lift smooth and easy. Plus, with 4-wheel drive and 45% gradeability, this boom lift is ideal for moving around outdoor jobsites.
Specifications
Working Height: 66 ft (20.39 m)
Width: 8 ft 2 in (2.49 m)
Lift Capacity: 500 lbs (227 kg)
Drive Speed - Stowed: 4.5 mph (7.24 km/h)
Drive Speed - Raised: 0.61 mph (0.98 km/h)
Gradeability - Stowed: 45%
Turning Radius - Outside: 17 ft 7 in (5.36 m)
Jib - Range of Articulation: 135 degrees
Platform Rotation: 160 degrees
Horizontal Reach: 50 ft 10 in (15.48 m)
Swing: 360 degrees continuous
Power Source: 48V DC (eight 6V 225Ah batteries)
Hydraulic Reservoir: 30 gal (113.56 L)
Machine Weight: 20,945 lbs (9,500 kg)
Tire Size: 12 x 16.5 in
Specs and measurements are based on available records. Please confirm with our team for precise details prior to purchase.
