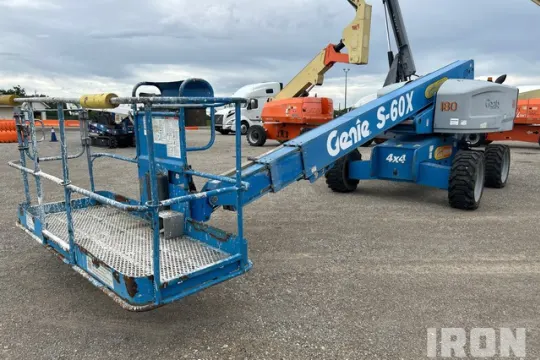

2014 Genie S-60X 4WD Diesel Telescopic Boom Lift

4087 hours
Ships nationwide
#A8366217

No Payments For 90 Days
Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.
IronClad Assurance
Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.

About this equipment

2014 Genie S-60X 4WD Diesel Telescopic Boom Lift The last reported number of hours was 4087. Hours and condition are captured at the time of listing and are subject to change. Please contact a representative about this piece of equipment for an updated reading.

Please be aware that these aerial units require proper safety harness and PPE to function test as well as load - Buyer is responsible for loading and removal of this item

Features

AI-Generated: Verify machine specs, features, and operability prior to purchasing.

60 ft Max Platform Height
500 lb Max Weight Capacity
Power to Platform
Onboard Generator
2014 US EPA Label
Deutz D2.9L4 4 Cylinder 49 hp 2.925 cc Diesel Engine
355/55D625 Tires

Specifications

AI-Generated: Verify machine specs, features, and operability prior to purchasing.

Engine Power: 131 hp
Displacement: 276 cu in
Lift Capacity: 1,000 lb
Max Working Height: 66 ft
Max Horizontal Reach: 50 ft 10 in
Platform Height: 60 ft
Platform Size: 96 in x 36 in
Lift Time: 68 sec
Lower Time: 58 sec
Drive Speed - Stowed: 4.8 mph
Gradeability - Stowed: 45%
Turning Radius - Outside: 19 ft
Fuel Tank Capacity: 25 gal
Ground Clearance: 1 ft 1 in
Weight: 22,100 lb
Serial Number / VIN: S60X14A-28997
Hour Meter / Odometer: 4087 hrs
Travel Alarm: Inoperable
Horn: Operational
Swing Brake: Operational
Current Safety Manual: Yes
Current Operator/Maintenance Manual: Yes
ANSI Guidelines: Yes
Gauges: Operational
Oil Pressure: The fault indicator shuts off after the engine oil pressure rises. 54 PSI
Warning Lights: Operational
Limited Function Check: The main components are in place and operational as noted.
Emergency Shut Off Switch: Operational
Safety Control Hand/Foot Switch: Operational
Emissions Status: 2014 US EPA Label
Blow-by (subjective visual observation): Video capture could not be performed
Starter: Operational
Fuel System: Operational
Exhaust System: No visible damage or missing components
Oil Leaks: No dripping leaks
Fuel Leaks: No dripping leaks
Cooling System Leaks: No dripping leaks
Onboard Generator: Operational, Engine RPMs do not raise when generator is on
Limited Function Check: The engine started and ran.
Limited Function Check: The drivetrain was operational.
Limited Function Check: The hydraulic system was operational.
Brake System: The brake system functioned, stopping and holding the machine.

Digital Glovebox

For your convenience, we've included these documents free to download so you can make the best decision.

Close-up detailed photos

Inspection Report

VIEW

Listings may picture specialty attachments not included in the sale. If you have questions about machine configuration, contact our sales team.
