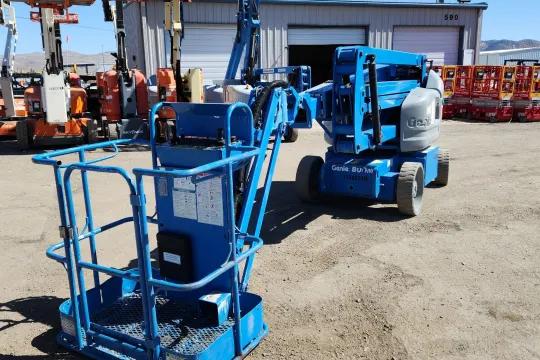

2014 Genie Z-40N Articulating
- 873 hours
- Ships nationwide
- #A6957624
+8 more2014 Genie Z-40N Articulating
- 873 hours
- Ships nationwide
- #A6957624
About this equipment
This versatile and easy-to-use 40' articulating boom lift for sale is handy for reaching in narrow work areas and is ideal for driving on smooth, finished surfaces. Plus, with its electric power source, you can be sure your indoor worksite will be free of any fumes or emissions. Whether you're doing some maintenance work, painting or electrical repairs, this boom lift is up to the task.
Features
Articulating Boom for Increased Maneuverability
Self-Leveling Platform
AC Power on Platform
Proportional Lift and Drive Controls
On-Board Diagnostic System
Solid Non-Marking Tires
Tilt Alarm with Drive & Lift Cut-Out
Descent and Travel Alarms
Hour Meter
Dual Flashing Beacons (Optional)
Platform Work Lights (Optional)
Air Line to Platform (Optional)
Oscillating Axle (Optional)
Hydraulic Platform Rotation
Foam-Filled Tires (Optional)
Specifications
Maximum Working Height: 46 ft 5 in
Maximum Horizontal Reach: 22 ft 8 in
Up and Over Clearance: 21 ft 3 in
Platform Height: 40 ft 5 in
Lift Capacity: 500 lbs
Platform Size: 30 in x 60 in
Turntable Rotation: 355° Continuous
Jib - Range of Articulation: 139° (+70°, -69°)
Drive Speed - Stowed: 4.0 mph
Drive Speed - Raised: 0.61 mph
Gradeability - Stowed: 30%
Inside Turning Radius: 2 ft
Outside Turning Radius: 11 ft
Ground Clearance: 5 in
Fuel Type: Battery/Electric
Digital Glovebox
For your convenience, we've included these documents free to download so you can make the best decision.
