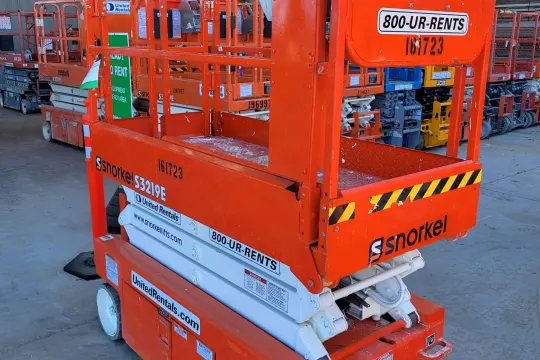

2015 Snorkel S3219E
- 380 hours
- Ships nationwide
- #A7079769
+8 more2015 Snorkel S3219E
- 380 hours
- Ships nationwide
- #A7079769
No longer available
About this equipment
This powerful little scissor lift for sale is ideal for when you need an elevated work platform but don’t have the space for a conventional scissor lift. It's battery powered and designed for construction, industrial maintenance and warehouse applications on smooth slab surfaces. It even fits through a standard doorway with the guardrails in position. This lift is compact, productive and easy to operate — perfect for any job. Don’t miss out on this incredible tool.
Specifications
Working Height: 25 ft (7.79m)
Platform Height: 19 ft (5.79m)
Lift Capacity: 550 lbs (250kg)
Platform Size: 39.4 x 39.4 in (1.0 x 1.0m)
Overall Width: 32 in (0.81m)
Overall Length: 70.5 in (1.79m)
Stowed Height: 78.5 in (1.99m)
Ground Clearance: 2.5 in (0.06m)
Weight: 3,417 lbs (1,550kg)
Drive Speed (Stowed): 2.2 mph (3.5km/h)
Drive Speed (Elevated): 0.7 mph (1.1km/h)
Gradeability: 25%
Power Source: 24V DC (four 6V 225Ah batteries)
Charger: 24V 25A automatic charger
Turning Radius (Inside): 0 in
Turning Radius (Outside): 69 in (1.75m)
Specs and measurements are based on available records. Please confirm with our team for precise details prior to purchase.
