Enclosed Cab with HVAC (Optional)
Standard Control System (Optional: SJC or H Pattern)
Suspension Seat (Optional)

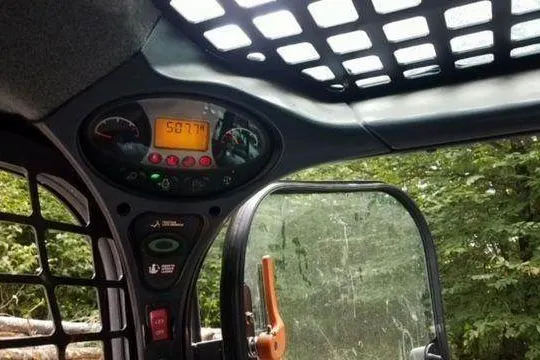

Advanced Display with Diagnostic Capabilities (Optional)
Engine Shutdown Protection
Automatic Ride Control (Optional)
Heavy-Duty Hydraulic Quick Coupler
Sound Reduction Material for Lower Operating Noise
2-Speed Travel (Optional)
Deluxe Instrumentation Panel (Optional)
High-Flow Hydraulics (Optional)
Air Ride Seat (Optional)
Attachment Control Kit
Roller Suspension System (Optional)
LED Work Lights (Optional)
Engine Power: 74 hp
Displacement: 2.4 L
Fuel Tank: 27.5 gal
Operating Weight: 9320 lb
Rated Operating Capacity (SAE): 2570 lb
Tipping Load: 7343 lb
Bucket Capacity: 0.52 yd³
Hydraulic Pump Flow: 17.1 gal/min
Lift Path: Vertical
Travel Speed: 6.6 mph
Ground Pressure: 5.7 psi
Width with bucket: 74 in
Height to Bucket Hinge Pin: 124 in
Turning Radius: 80 in
Engine Make: Kubota
For your convenience, we've included these documents free to download so you can make the best decision.
