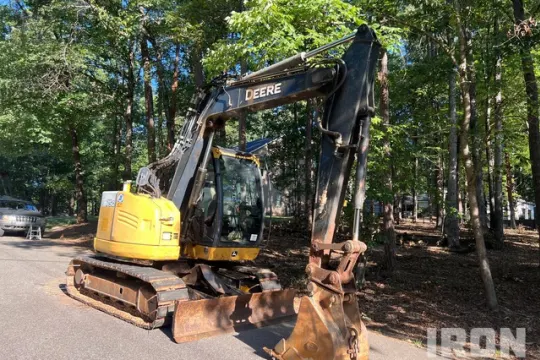

2016 John Deere 75G Tracked Excavator

8773 hours
Ships nationwide
United States
#A7437088

IronClad Assurance
Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.
No Payments For 90 Days
Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

About this equipment

The 2016 John Deere 75G is a robust tracked excavator, designed to deliver strong performance for a variety of digging and earthmoving applications. Equipped with a 7 ft stick and a 23 in digging bucket, this machine is configured for effective digging depth and optimized bucket load. Its 17.5 in triple grouser track shoes with rubber pads enhance mobility and stability on diverse terrains, making it a versatile choice for different operational environments. Featuring auxiliary hydraulic plumbing, the excavator is ready to accommodate a range of attachments, thereby increasing its utility beyond standard digging tasks. The presence of a manual quick coupler further aids in rapid changes of attachments, enhancing operational efficiency. With 8773 hours, the machine is also equipped with an air conditioner, ensuring operator comfort during extended work periods, and adheres to 2015 US EPA and CARB compliance, making it suitable for work in regulated markets.

Listings may picture attachments not included in the sale. Contact our sales team to confirm features, specs, and machine configuration.

Features

Air Conditioner
2015 US EPA Label
CARB Compliant
7 ft Stick
Auxiliary Hydraulic Plumbing
Backfill Blade
17.5 in Triple Grouser Track Shoes w/Rubber Pads
Manual Quick Coupler
23 in Digging Bucket

Specifications

Engine Power: 57 hp
Net Power: 53.6 hp
Displacement: 159 cu in
Operating Weight: 18,221 lbs
Max Digging Depth: 15 ft 1 in
Max Reach Along Ground: 23 ft 7 in
Max Loading Height: 16 ft 5 in
Fuel Capacity: 33 gal
Hydraulic System Fluid Capacity: 29.1 gal
Swing Speed: 9.5 rpm
Track Gauge: 6 ft 6 in
Shoe Size: 17.7 in
Serial Number / VIN: 1FF075GXCFJ015760
CE Mark: No CE mark found
Hour Meter / Odometer: 8773 hrs
Exterior Lights: Operational
Travel Alarm: Operational
Horn: Operational
Seat Belts: Operational
Safety Lock Out/Stop: Operational
Swing Brake: Operational
Current Safety Manual: Yes
Current Operator/Maintenance Manual: Yes
Engine Oil Pressure: The fault indicator shuts off after the engine oil pressure rises.
Warning Lights: Operational
Gauges: Operational
Air Conditioner: Operational
Heater: Operational
Limited Function Check: The main components are in place and operational as noted. The start code is 9999
Engine: 2015 US EPA Label, CARB Compliant
A/C Compressor: Operational
Blow-by (subjective visual observation): No noticeable vapor or pressure
Starter: Operational
Oil Leaks: No dripping leaks
Fuel Leaks: No dripping leaks
Cooling System Leaks: No dripping leaks
Limited Function Check: The engine started and ran.
Limited Function Check: The drivetrain was operational.
Auxiliary Hydraulic Plumbing: Not operationally checked
Boom Lift Cylinder(s): Dripping leak
Limited Function Check: The hydraulic system was operational.
Limited Function Check: The main components were operational in a limited check.
Left Grouser Height: 44 mm
Right Grouser Height: 43 mm
Cutting Edge / Teeth / Adapters: Some missing
Quick Coupler: Not operationally checked
Blade Condition: Worn center area
