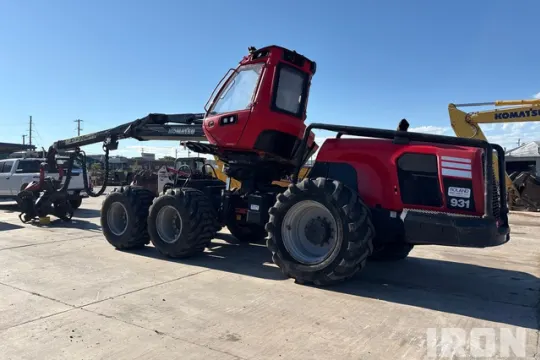

2016 Komatsu 931.2 Wheel Harvester

  • Ships nationwide
  • United States
  • #A7251091

No longer available

View more Forestry equipment
  • IronClad Assurance

    IronClad Assurance

    Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.

  • No Payments For 90 Days

    Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

About this equipment

The 2016 Komatsu 931.2 is an efficient and robust choice for forestry operations. Equipped with a Komatsu C144 32 inch processor head, this unit is designed for precise and effective tree processing. The inclusion of steel feed rolls ensures reliable handling and maneuvering of logs, enhancing productivity in challenging environments. Additionally, the butt saw feature provides an essential capability for cutting tree stumps close to the ground, facilitating easier land clearing. This model also requires AdBlue, highlighting its compliance with emissions standards for a more environmentally friendly operation. Overall, the 2016 Komatsu 931.2 combines essential forestry-specific features with performance-oriented technology, making it a valuable asset for any forestry contractor's fleet.

Listings may picture attachments not included in the sale. Contact our sales team to confirm features, specs, and machine configuration.

Features

  • Requires AdBlue

  • Komatsu C144 32 in Processor Head

  • Steel Feed Rolls

  • Butt Saw

Specifications

  • Engine Power: 251 hp

  • Engine Model: AGCO Power 74 LFTN

  • Displacement: 452 cu in

  • Fuel Capacity: 77.9 gal

  • Hydraulic System Fluid Capacity: 39.6 gal

  • Number of Wheels: 6

  • Max Forward Speed: 15 mph

  • Max Reverse Speed: 15 mph

  • Operating Weight: 40785.5 lbs

  • Length w/o Head: 21.5 ft

  • Width Over Tires: 9.2 ft

  • Height to Top of Cab: 12.1 ft

  • Ground Clearance: 24.8 in

  • Crane Make: Komatsu CRH18

  • Crane Max Reach: 32.8 ft

  • Serial Number / VIN: 9310021162

  • Hour Meter / Odometer: Meter reading could not be obtained, Could not get screen to display meter reading

  • Exterior Lights: Operational

  • Horn: Operational

  • Seat Belts: Operational

  • Swing Brake: Operational

  • Current Safety Manual: No

  • Current Operator/Maintenance Manual: No

  • Engine Oil Pressure: The gauge registers in the operating range.

  • Warning Lights: Operational, Low hydraulic oil light stays on

  • Gauges: Operational

  • Air Conditioner: Inoperable

  • Heater: Operational

  • Limited Function Check: The main components are in place and operational as noted.

  • Engine: US EPA Label not legible Requires AdBlue

  • A/C Compressor: Compressor will not engage

  • Blow-by (subjective visual observation): No noticeable vapor or pressure

  • Starter: Operational

  • Oil Leaks: No dripping leaks

  • Fuel Leaks: No dripping leaks

  • Cooling System Leaks: No dripping leaks

  • Limited Function Check: After jump starting, the engine ran.

  • Limited Function Check: Some components could not be operationally checked.

  • Hydraulic Tank: Low fluid level

  • Auxiliary Hydraulic Plumbing: Capped off, End of stick

  • Limited Function Check: The hydraulic system is weak. Leak in right cab tilt cylinder, Low hydraulic oil, Some hydraulics cannot be operationally checked.

  • Limited Function Check: The main components were operational in a limited check.

  • Limited Function Check: The main chassis components functioned with wear in the pivot points.

  • Limited Function Check - Brakes: The service brakes were operational.

  • Right Rear Tire: Wheel is off the bead

  • Attachment (Other): Worn, Hydraulic leak in saw motor

  • date of analysis: Aug 31, 2026

  • Silicon: 3.91 PPM

  • Tin: 0 PPM

  • Silver: 0.06 PPM

  • Aluminum: 0.86 PPM

  • Chromium: 0.39 PPM

  • Lead: 2.45 PPM

  • Copper: 0.54 PPM

  • Nickel: 0.06 PPM

  • Iron: 11.14 PPM

  • Glycol: NEG

  • Water: NEG

  • Fuel: <5%

  • Silicon: 2.9 PPM

  • Silver: 0.01 PPM

  • Aluminum: 0.87 PPM

  • Chromium: 0.01 PPM

  • Lead: 1.75 PPM

  • Copper: 0.02 PPM

  • Nickel: 0.21 PPM

  • Iron: 4.74 PPM

  • Glycol: N/A

  • Water: N/A
