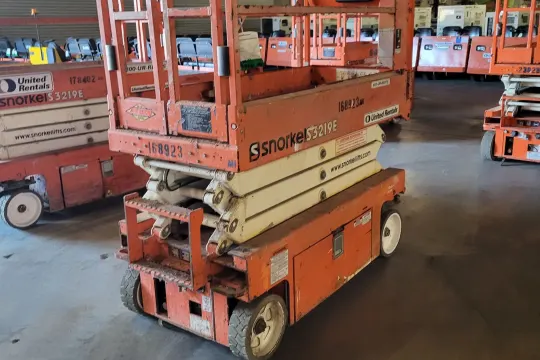

2016 Snorkel S3219E
- 1315 hours
- Ships nationwide
- #A2526634
+9 more2016 Snorkel S3219E
- 1315 hours
- Ships nationwide
- #A2526634
About this equipment
This powerful little scissor lift for sale is ideal for when you need an elevated work platform but don’t have the space for a conventional scissor lift. It's battery powered and designed for construction, industrial maintenance and warehouse applications on smooth slab surfaces. It even fits through a standard doorway with the guardrails in position. This lift is compact, productive and easy to operate — perfect for any job. Don’t miss out on this incredible tool.
Specifications
Specs and measurements are based on available records. Please confirm with our team for precise details prior to purchase.
Working Height: 25 ft (7.79m)
Platform Height: 19 ft (5.79m)
Lift Capacity: 550 lbs (250kg)
Platform Size: 39.4 x 39.4 in (1.0 x 1.0m)
Overall Width: 32 in (0.81m)
Overall Length: 70.5 in (1.79m)
Stowed Height: 78.5 in (1.99m)
Ground Clearance: 2.5 in (0.06m)
Weight: 3,417 lbs (1,550kg)
Drive Speed (Stowed): 2.2 mph (3.5km/h)
Drive Speed (Elevated): 0.7 mph (1.1km/h)
Gradeability: 25%
Power Source: 24V DC (four 6V 225Ah batteries)
Charger: 24V 25A automatic charger
Turning Radius (Inside): 0 in
Turning Radius (Outside): 69 in (1.75m)
