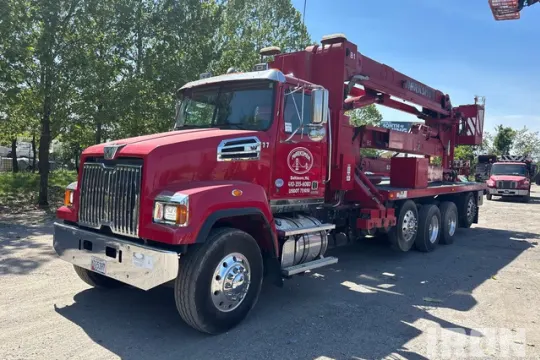

2016 PM 240-C Snooper 600 lb Articulated Boom on 2016 Western Star 4700 10x4 Bridge Inspection Truck

Detroit DD13 6 Cylinder 12.8 L Diesel Engine

Requires Diesel Exhaust Fluid

8079 Engine hrs

Air Conditioner

Cruise Control

Engine Brake

Allison 4500 Automatic Transmission

Differential Lock

20000 lb Front Axle

59200 lb Rears

Meritor RT-46-160P Drive Axles

4.56:1 Axle Ratio

79200 lb GVWR

Air Ride Cab

Aluminum Wheels

315/80R22.5 Front Tires

11R22.5 Rear Tires

Air Lift Pusher Axle

Air Lift Tag Axle

Dual Steering Boxes

Double Frame

Hendrickson RT/RTE Series Spring over Walking Beam Suspension

264 in Wheelbase

PTO

Front Mounted

5 Section Boom

2 ft 6 in Jib Extension

Dual Controls

A-Outriggers

24 ft x 96 in Bed

Kohler Diesel Auxiliary Engine

Engine Power: 470 hp

Displacement: 12.8 L

Transmission: Automatic 6-speed

Fuel Type: Diesel

Wheelbase: 152 inches

GVWR: 56,000 lbs

Fuel Tank Capacity: 100 gallons

Axle Configuration: 6x4

Brake Type: Air

Cab Type: Standard Day Cab

Serial Number / VIN: 5KKMAVDV4GLHA5598

Hour Meter / Odometer: 53865 mi

Motor Vehicle Safety Standards Label: Yes

Exterior Lights: Operational

Steer Axle: T-LI-D0: 13/32"|T-RI-D0: 15/32"|Drum: B-L-D|Drum: B-R-D|Aluminum: T-RI-D|Aluminum: T-LI-D

Rear Axle: T-LO-D0: 16/32"|T-RO-D0: 16/32"|T-LI-D0: Missing|T-RI-D0: Missing|Drum: B-L-D|Drum: B-R-D|Aluminum: T-LO-D|Aluminum: T-RO-D

Rear Axle: T-LO-D0: 13/32"|T-LI-D0: 12/32"|T-RI-D0: 10/32"|T-RO-D0: 12/32"|Drum: B-L-D|Drum: B-R-D|Aluminum: T-LO-D|Aluminum: T-LI-D|Aluminum: T-RI-D|Aluminum: T-RO-D

Rear Axle: T-LO-D0: 17/32"|T-LI-D0: 20/32"|T-RI-D0: 19/32"|T-RO-D0: 19/32"|Drum: B-R-D|Drum: B-L-D|Aluminum: T-RO-D|Aluminum: T-RI-D|Aluminum: T-LO-D|Aluminum: T-LI-D

Rear Axle: T-LO-D0: 13/32"|T-RO-D0: 15/32"|T-LI-D0: Missing|T-RI-D0: Missing|Drum: B-L-D|Drum: B-R-D|Aluminum: T-LO-D|Aluminum: T-RO-D

Emissions Information: US EPA Label not legible Requires Diesel Exhaust Fluid

A/C Compressor: Operational

Blow-by (subjective visual observation): No noticeable vapor or pressure

Starter: Operational

Air Compressor: Operational

Fuel System: Operational

Oil Leaks: No dripping leaks

Fuel Leaks: No dripping leaks

Cooling System Leaks: No dripping leaks

Limited Function Check: The engine started and ran.

Engine Hours: 8079 Engine hrs

Window Controls: Both Manual

Seat Belts: Operational

Horn: Air horn operational, Electric horn operational

Oil Pressure: The gauge registers in the operating range.

Warning Lights: Operational

Gauges: Operational

Brake Control: Operational

Engine Brake: Not operationally checked

PTO Control: Operational

ECM Miles: 53863 ECM mi

Air Conditioner: Operational

Heater: Operational

Limited Function Check: The main components are in place and operational as noted.

Transmission: Operational

Power Take Off: Operational

PTO Pump: Operational, Residue present no dripping leak found.

Limited Function Check: The drivetrain was operational without a load.

Limited Function Check - Brakes: The service brakes are operational, The park brake is operational.

Boom Lift Cylinder(s): Dripping leak

Work Basket: The tilt sensor is inoperable.

Safety Lock Out/Stop: Operational

Limited Function Check: The hydraulic system was operational.

date of analysis: May 14, 2026

Silicon: 0 PPM

Tin: 1.17 PPM

Silver: 0.33 PPM

Aluminum: 2.76 PPM

Chromium: 0.2 PPM

Lead: 0.72 PPM

Copper: 51.82 PPM

Nickel: 0.51 PPM

Iron: 9.87 PPM

Glycol: NEG

Water: NEG

Fuel: <5%
