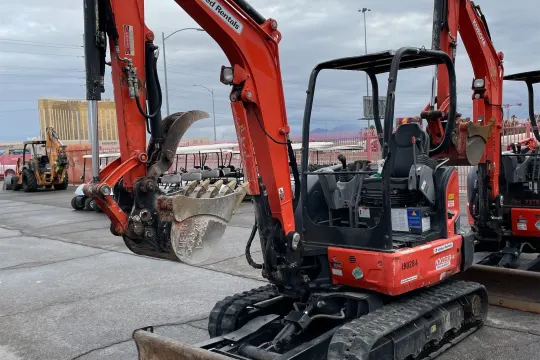

2017 Kubota KX033-4R1A
- 2311 hours
- Ships nationwide
- #A6431850
+8 more2017 Kubota KX033-4R1A
- 2311 hours
- Ships nationwide
- #A6431850
No longer available
About this equipment
This compact excavator — also known as a mini excavator — is perfect for your earth-moving needs in close working conditions. This model features a digging depth over 10' and zero tail swing for increased maneuverability. Excellent visibility, and optional heat and air conditioning for the operator's safety and comfort.
Specifications
Engine Type: Kubota D1703-M-DI
Engine Power: 24.8 HP (18.5 kW)
Operating Weight: 7,183 lbs (3,260 kg)
Max. Dig Depth: 10.3 ft (3.1 m)
Max. Dump Height: 11.5 ft (3.5 m)
Max. Dig Radius: 16.9 ft (5.1 m)
Fuel Tank Capacity: 13.5 gal (51 L)
Hydraulic Pump Flow Capacity: 17.6 gal/min (66.6 L/min)
Swing Speed: 9.4 rpm
Travel Speed - High: 2.9 mph (4.7 km/h)
Travel Speed - Low: 1.7 mph (2.7 km/h)
Ground Pressure: 4.37 psi (30.1 kPa)
Bucket Digging Force: 8,138 lbs (3,693 kg)
Arm Digging Force: 4,743 lbs (2,150 kg)
Overall Length: 15.4 ft (4.7 m)
Specs and measurements are based on available records. Please confirm with our team for precise details prior to purchase.
