2017 Vermeer D23X30III

  • 3890 hours
  • Ships nationwide
  • USA
  • #A5569648
190
image+187 more

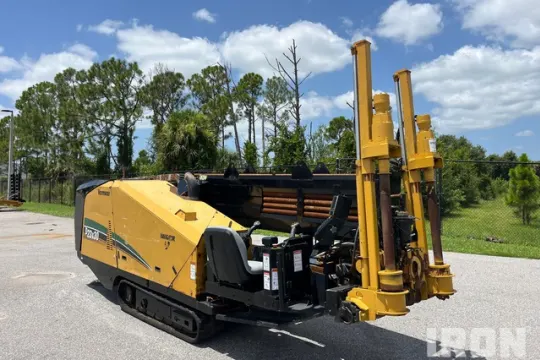

2017 Vermeer D23X30III Directional Drill

  • 3890 hours
  • Ships nationwide
  • United States
  • #A5569648
Asking Price$79,000 USD
Est. Loan Payment

Price excludes taxes, fees, and shipping

  • No Payments For 90 Days

    Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

  • IronClad Assurance

    IronClad Assurance

    Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.

About this equipment

The 2017 Vermeer D23X30III is designed to optimize performance and efficiency on your drilling projects. This model is equipped with a Tier 4 engine, adhering to the latest emissions standards, and requires Diesel Exhaust Fluid to help reduce its environmental footprint. Featuring an open operator station, it allows for easy monitoring and control during operation. With 3890 hours, this drill includes 40 drill rods, enhancing its capability for various drilling applications. It rides on 12-inch rubber tracks, offering good traction and mobility across different terrains. Ideal for those seeking a robust and compliant drilling solution.

Listings may picture attachments not included in the sale. Contact our sales team to confirm features, specs, and machine configuration.

Features

  • Open Operator Station

  • Tier 4

  • US EPA Label

  • Requires Diesel Exhaust Fluid

  • 40 Drill Rods

  • 12 in Rubber Tracks

Specifications

  • Engine Power: 131 hp

  • Displacement: 276 cu in

  • Fuel Tank Capacity: 35 gal

  • Maximum Spindle Torque: 3000 ft-lb

  • Maximum Spindle Speed: 225 rpm

  • Maximum Pullback Force: 24000 lbs

  • Maximum Thrust Force: 24000 lbs

  • Drill Rod Diameter: 2.375 in

  • Drill Rod Length: 10 ft

  • Minimum Bore Diameter: 3 in

  • Maximum Bore Diameter: 4.5 in

  • Operating Weight: 16000 lbs

  • Length: 18 ft

  • Width: 5.5 ft

  • Height: 7 ft

  • Serial Number / VIN: 1VRN20070H1000647

  • Hour Meter / Odometer: 3890 hrs

  • Exterior Lights: Some not operational, One lights are not operational

  • Travel Alarm: Inoperable

  • Horn: Inoperable

  • Seat Belts: Operational

  • Safety Lock Out/Stop: Operational

  • Current Safety Manual: No

  • Current Operator/Maintenance Manual: No

  • Engine Oil Pressure: The gauge registers in the operating range.

  • Warning Lights: Operational, DPF light on light stays on

  • Gauges: Operational

  • Limited Function Check: The main components are in place and operational as noted.

  • Emissions Status: US EPA Label

  • Blow-by (subjective visual observation): Video capture could not be performed

  • Starter: Operational

  • Oil Leaks: No dripping leaks

  • Fuel Leaks: No dripping leaks

  • Cooling System Leaks: No dripping leaks

  • Limited Function Check: The engine started and ran.

  • Limited Function Check (Drivetrain-Track): The drivetrain was operational without a load.

  • Boom Lift Cylinder(s): Dripping leak

  • Limited Function Check: The hydraulic system was operational.

  • Stake Down System: Operational

  • Drill Rod Loading System: Operational

  • Drill Rod Racks: 1 rod racks

  • Limited Function Check: The main chassis components functioned when checked without a load.

  • Left Rubber Belt Drive Lugs: Wearing through belt

  • Left Grouser Height: 24 mm

  • Right Rubber Belt Drive Lugs: Wearing through belt

  • Right Grouser Height: 24 mm
