2018 Caterpillar TL1255D

  • 5196 hours
  • Ships nationwide
  • USA
  • #A1352556
95
image+92 more

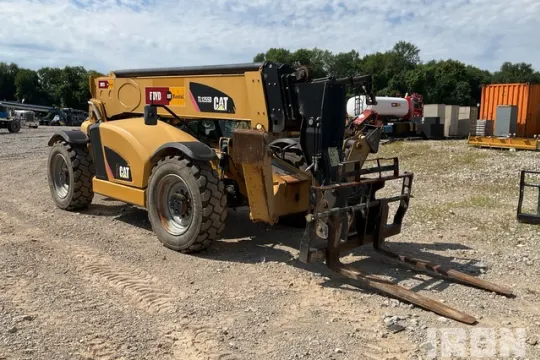

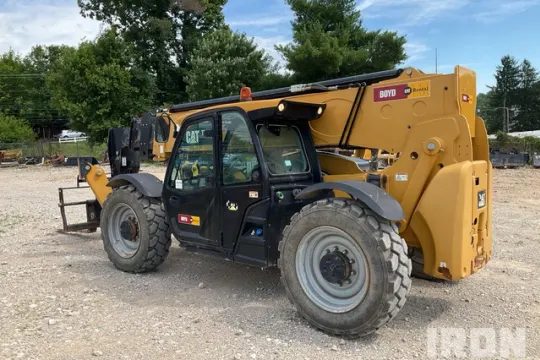

2018 Cat TL1255D Telehandler

  • 5196 hours
  • Ships nationwide
  • United States
  • #A1352556
Asking Price$70,000 USD
Est. Loan Payment

Price excludes taxes, fees, and shipping

  • IronClad Assurance

    IronClad Assurance

    Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.

  • No Payments For 90 Days

    Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

About this equipment

The 2018 Caterpillar TL1255D is a robust telehandler designed for various lifting tasks. Featuring a 55 ft maximum lift height and a substantial 12,000 lb maximum lift capacity, this unit is well-suited for heavy lifting operations. It is equipped with a hydraulic coupler and auxiliary hydraulic plumbing, enhancing its versatility for different attachments. Additionally, the enclosed cab with air conditioning ensures operator comfort during long working hours. Notable aspects such as outriggers provide stability during operation, and the 59.5 in forks are ready to handle diverse load sizes. This model also adheres to 2017 US EPA regulations and requires diesel exhaust fluid, ensuring compliance with environmental standards.

Listings may picture attachments not included in the sale. Contact our sales team to confirm features, specs, and machine configuration.

Features

  • Enclosed Cab

  • Air Conditioner

  • 55 ft Max Lift Height

  • 12000 lb Max Lift Capacity

  • 2017 US EPA Label

  • Requires Diesel Exhaust Fluid

  • 59.5 in Forks

  • Hydraulic Coupler

  • Outriggers

  • Auxiliary Hydraulic Plumbing

Specifications

  • Engine Power: 142 hp

  • Net Engine Power: 127 hp

  • Max Lift Capacity: 12,000 lb

  • Operating Weight: 30,900 lb

  • Max Lift Height: 54.3 ft

  • Max Forward Reach: 42 ft

  • Load at Max Height: 5,000 lb

  • Load at Max Reach: 3,500 lb

  • Engine Model: Cat C4.4 ACERT

  • Engine Displacement: 268.5 cu in

  • Fuel Tank Capacity: 38 gal

  • Hydraulic System Fluid Capacity: 38 gal

  • Top Travel Speed: 20 mph

  • Tire Size: 17.5LR24

  • Brakes Type: Wet disc

  • Serial Number / VIN: ML701137

  • Hour Meter / Odometer: 5196 hrs

  • Exterior Lights: Operational

  • Travel Alarm: Operational

  • Horn: Operational

  • Seat Belts: Operational

  • Safety Lock Out/Stop: Operational

  • Current Safety Manual: Yes

  • Current Operator/Maintenance Manual: Yes

  • Engine Oil Pressure: The gauge registers in the operating range.

  • Warning Lights: Operational

  • Gauges: Operational

  • Air Conditioner: Operational

  • Heater: Operational

  • Limited Function Check: The main components are in place and operational as noted.

  • Engine: 2017 US EPA Label, Requires Diesel Exhaust Fluid

  • A/C Compressor: Operational

  • Blow-by (subjective visual observation): No noticeable vapor or pressure

  • Starter: Operational

  • Oil Leaks: No dripping leaks

  • Fuel Leaks: No dripping leaks

  • Cooling System Leaks: No dripping leaks

  • Limited Function Check: The engine started and ran.

  • Transmission: Operational

  • Transfer Case / Drop Box: Operational

  • Limited Function Check: The drivetrain was operational.

  • Auxiliary Hydraulic Plumbing: Not operationally checked, Front

  • Limited Function Check: The hydraulic system was operational.

  • Limited Function Check: The main chassis components functioned during a limited check.

  • Brake Lines/Hoses: Not operationally checked

  • Park Brake: Stopped from a slow roll

  • Limited Function Check - Brakes: The service brakes are operational, The park brake is operational.

  • Tire Brands: BKT

  • Loader Quick Coupler: Operational, Not operationally checked

  • Load Back Rest: Bent metal throughout

  • date of analysis: Jul 06, 2026

  • Silicon: 0 PPM

  • Tin: 0 PPM

  • Silver: 0 PPM

  • Aluminum: 0 PPM

  • Chromium: 0 PPM

  • Lead: 1.27 PPM

  • Copper: 0.24 PPM

  • Nickel: 0.02 PPM

  • Iron: 1.82 PPM

  • Glycol: NEG

  • Water: NEG

  • Fuel: <5%

  • Tin: 0.42 PPM

  • Aluminum: 7.54 PPM

  • Chromium: 0.13 PPM

  • Lead: 2.45 PPM

  • Copper: 15.09 PPM

  • Nickel: 0.44 PPM

  • Iron: 28.04 PPM

  • Glycol: N/A

  • Water: N/A
