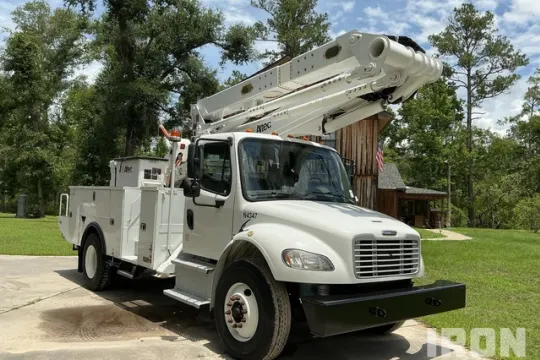

2017 Altec TA50 50 ft on 2018 Freightliner M2 106 4x2 Bucket Truck

Cummins B6.7 6 Cylinder 6.7 L Diesel 250 hp Engine

2017 US EPA Label

Requires Diesel Exhaust Fluid

4974.3 Engine hrs

Air Conditioner

Cruise Control

Allison 3500 Automatic Transmission

14600 lb Front Axle

21000 lb Rears

5.57:1 Axle Ratio

33000 lb GVWR

12R22.5 Front Tires

11R22.5 Rear Tires

Spring Suspension

180 in Wheelbase

PTO

600 lb Capacity

Center Mounted

Insulated Two-Person Articulating-Telescopic Boom

Utility Body

Boom Tip Mounted Winch

Material Handling Jib

A-Outriggers

13 ft 4 in x 94 in Bed

Pintle Hitch

Engine Power: 260 hp

Torque: 660 lb-ft

Engine Type: Cummins B6.7

Fuel Type: Diesel

Displacement: 408 cu in

Transmission Type: Allison 3000 RDS Automatic

Drive Configuration: 4x2 or 6x4

Cab Type: Conventional Day Cab

Brake System: Air

Suspension Type: Spring or Air

Front Axle Weight Rating: 12,000 lbs

Rear Axle Weight Rating: 21,000 lbs

Gross Vehicle Weight Rating: Up to 33,000 lbs

Wheelbase Options: Up to 306 inches

Fuel Tank Capacity: Up to 100 gallons

Serial Number / VIN: 3ALACXFC1JDJN4347

Hour Meter / Odometer: 78252 mi

Motor Vehicle Safety Standards Label: Yes

Exterior Lights: Operational

Steer Axle: T-LI-D0: 26/32"|T-RI-D0: 26/32"|Drum: B-L-D|Drum: B-R-D|Steel: T-LI-D|Steel: T-RI-D

Rear Axle: T-LO-D0: 30/32"|T-LI-D0: 30/32"|T-RI-D0: 28/32"|T-RO-D0: 28/32"|Drum: B-L-D|Drum: B-R-D|Steel: T-LO-D|Steel: T-LI-D|Steel: T-RI-D|Steel: T-RO-D

Emissions Information: 2017 US EPA Label, Requires Diesel Exhaust Fluid

A/C Compressor: Operational

Blow-by (subjective visual observation): No noticeable vapor or pressure

Starter: Operational

Air Compressor: Operational

Fuel System: Operational

Oil Leaks: No dripping leaks

Fuel Leaks: No dripping leaks

Cooling System Leaks: No dripping leaks

Limited Function Check: The engine started and ran.

Engine Hours: 4974.3 Engine hrs

Window Controls: Both Manual

Seat Belts: Operational

Horn: Air horn operational, Electric horn operational

Oil Pressure: The gauge registers in the operating range. 30 PSI Gauge inoperable

Warning Lights: Operational

Gauges: Operational

Brake Control: Operational

PTO Control: Operational

ECM Miles: 78251 ECM mi

Air Conditioner: Operational

Heater: Not operationally checked

Limited Function Check: The main components are in place and operational as noted.

Transmission: Operational

Power Take Off: Operational

Limited Function Check: The drivetrain was operational.

Auxiliary Hydraulic Plumbing: Not operationally checked, Rear

Limited Function Check: The hydraulic system was operational.

Limited Function Check: The main chassis components were operational in a limited check.

Tool / Work Box: Painted to match body, Tool box is locked

Brake Type: Air brakes

Park Brake: Held against power

Limited Function Check - Brakes: The brake system functioned, stopping and holding the machine.

External Electrical / Air Connections: Not operationally checked

Dielectric Certification: There was no Dielectric Certification label located on the machine

date of analysis: Jun 03, 2026

Silicon: 4.01 PPM

Tin: 3.55 PPM

Silver: 0.07 PPM

Aluminum: 22.57 PPM

Chromium: 0.39 PPM

Lead: 14.76 PPM

Copper: 30.91 PPM

Nickel: 1.85 PPM

Iron: 217.51 PPM

Glycol: N/A

Water: N/A

Fuel: <5%
