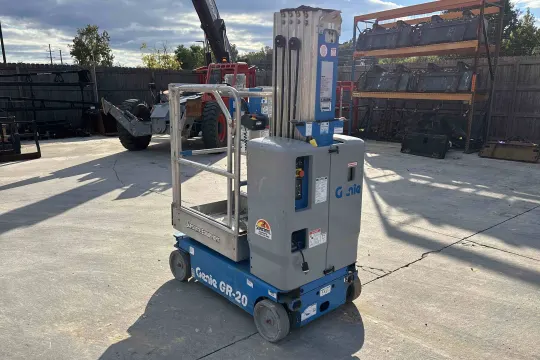

2018 Genie GR-20

About this equipment

2018 Genie GR-20 Vertical Mast Lift available with a lift capacity of 350 lbs and a maximum lift height of 20 ft. The platform height reaches up to 19 ft 9 in, and the unit has a stowed height of 6 ft 6 in. Features a machine width of 2 ft 7.5 in and a length of 4 ft 5 in, weighing 2,451 lbs. Equipped with both stowed and raised drive speeds of 2.5 mph and 0.5 mph, respectively, and has raise/lower times of 20/30 sec. Offers a gradeability of 30% and features a turning radius of 5 ft 1 in outside and zero inside. Utilizes a power source of four 6V batteries and comes with non-marking solid tires. Enhanced with proportional lift and drive controls, a rigid mast system, and auxiliary platform lowering. Includes the SmartLink control system, zero inside turning radius, and front-wheel drive. Its compact dimensions facilitate easy maneuvering. Additional features include platform work lights (optional), an onboard diagnostic system, emergency stop controls on both platform and ground levels, swing-out component trays for easy access, an automatic 25 Amp battery charger, a slide-out battery tray, and descent and tilt alarms.
