2018 Genie GS-3246

About this equipment

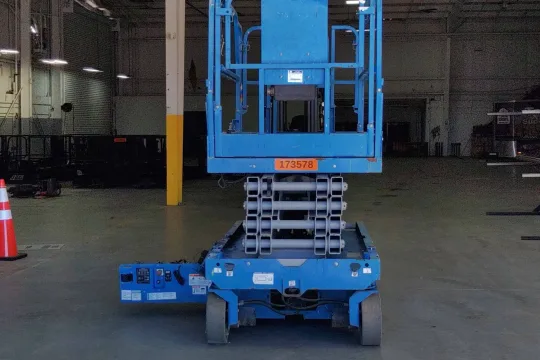

This 2018 Genie GS-3246 scissor lift offers a substantial 700 lbs lift capacity, with a working height of up to 38 ft and a platform height of 32 ft. The unit's dimensions include a machine width of 46 inches and a length of 8 ft, weighing in at 5,185 lbs. Key performance specifications include a drive speed of 2.2 mph when the platform is lowered, a lift and lower time of 45/30 seconds, and a 25% gradeability. It features zero inside turning radius and an outside turning radius of 102 inches. The lift is powered by a 24V 225Ah battery and comes equipped with a 25 amp automatic charger. Notable functionalities include proportional controls, an onboard diagnostic system, non-marking tires, a slide-out platform extension, and dual front wheel drive. Safety features comprise an emergency stop at both platform and ground controls, manual platform lowering valve, tilt sensor with audible alarm, and platform control with a battery charge indicator. Additional benefits include swing-out component trays for easy maintenance and optional AC power to the platform.
