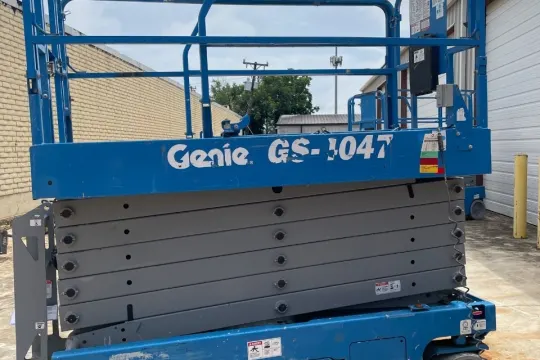

2018 Genie GS-4047

About this equipment

2018 Genie GS-4047 lift offers a working height of 45 ft and a platform height of 39 ft 4 in. It has a lift capacity of 550 lbs and a machine weight of 7,800 lbs. The unit measures 47 in wide and 98 in long, with a maximum drive speed of 2.2 mph when stowed and 0.7 mph when raised. It features a lift/lower time of 70/68 sec, 25% gradeability, and can operate with a zero inside turning radius while having an outside turning radius of 110 in. Power is supplied by a 24V DC source. Additional features include proportional lift and drive controls, platform control with battery charge indicator, and on-board diagnostic system. It is equipped with manual platform lowering valve, front-wheel drive, emergency stops at both platform and ground controls, and swing-out component trays for maintenance. It also incorporates a Smart Link control system, non-marking tires, an automatic 25 amp battery charger, dual front wheel brakes, AC power to the platform, descent and tilt alarms, folding rails with half-height swing gate, and lanyard attachment points.
