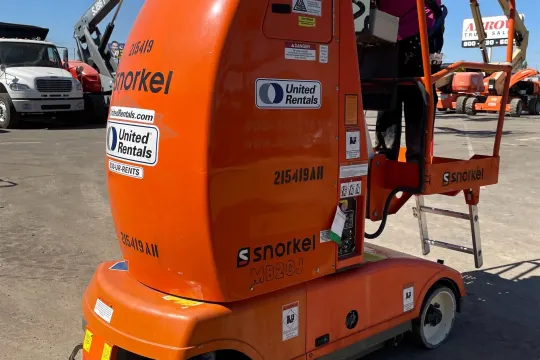

2018 Snorkel MB20J Vertical Mast
- 126 hours
- Ships nationwide
- #A0092778
+8 more2018 Snorkel MB20J Vertical Mast
- 126 hours
- Ships nationwide
- #A0092778
About this equipment
Elevated maintenance, painting or lighting work is a breeze with this 20' to 24' mobile vertical mast boom lift rental. This vertical boom lift is designed to fit in narrow spaces, such as through doorways and into freight elevators. It is easily operated and driven from the platform, with narrow turn radii and advanced maneuverability. Top manufacturers include JLG and more.
Features
Compact Vertical Mast Design
Proportional Lift and Drive Controls
Non-Marking Tyres
360 Degree Swivel Operator Harness Point
Dual Power Source (Battery and Diesel options)
Integrated Battery Charger
Joystick Control with Diagnostic System
Extendable Platform (Optional)
Tilt Alarm Sensor
Descent and Tilt Alarms
All-Motion Alarm
Emergency Lowering System
Flashing Amber Beacon (Optional)
Driveable at Full Height
Overload Sensing System
Specifications
Maximum Working Height: 26 ft
Maximum Platform Height: 20 ft
Stowed Height: 6 ft 7 in
Stowed Length: 4 ft 5 in
Stowed Width: 2 ft 11 in
Platform Size (L x W): 35 in x 24 in
Lift Capacity: 350 lbs
Lift Speed - Up: 23 seconds
Lift Speed - Down: 19 seconds
Drive Speed - Stowed: 2.5 mph
Drive Speed - Raised: 0.5 mph
Gradeability: 30%
Turning Radius - Inside: Zero
Turning Radius - Outside: 55 in
Controls: Proportional
Digital Glovebox
For your convenience, we've included these documents free to download so you can make the best decision.
