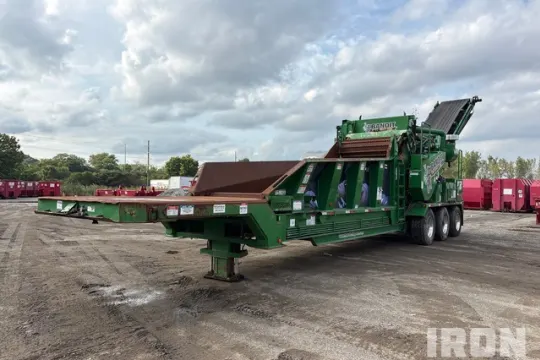

2020 Bandit 3680 Tri/A Horizontal Grinder

2019 US EPA Label

Cat KCPXL18.1HXF 6 Cylinder 900 kW 18.1 L Engine

60 in Feeder

60 in Rotor

46 in Discharge Conveyor

Tri/A Carrier

Spring Suspension

Serial Number / VIN: 4FMUS4430LR511853

Hour Meter / Odometer: 2467 hrs

Safety Lock Out/Stop: Operational

Current Safety Manual: No

Current Operator/Maintenance Manual: No

Oil Pressure: The gauge registers in the operating range.

Warning Lights: Operational

Gauges: Operational

Limited Function Check: The main components are in place and operational as noted.

Emissions Status: 2019 US EPA Label

Blow-by (subjective visual observation): No noticeable vapor or pressure

Starter: Operational

Radiator: Low on coolant. Coolant sensor is bypassed with bottle of water

Limited Function Check: The engine started and ran.

Feed Table: 19 ft 6 in long x 5 ft wide feed table

Frame Rails/ Main Beams Condition: No visible damage

Brake Lines/Hoses: Not operationally checked

Limited Function Check - Brakes: The brakes were not operationally checked.

Tires: Left front outer: 17/32", Left middle outer: 19/32", Left rear outer: 22/32", Right rear outer: 13/32", Right middle outer: 20/32", Right front outer: 15/32"

Power Receptacle Functional: Not operationally checked

Lights/Wiring Condition: Not operationally checked

Marker Lights Functional: Not operationally checked

Brake Lights Functional: Not operationally checked

Limited Function Check: The hydraulic system was operational.

date of analysis: Sep 22, 2026

Silicon: 1.67 PPM

Tin: 1.42 PPM

Silver: 0.03 PPM

Aluminum: 1.2 PPM

Chromium: 0.55 PPM

Lead: 1.61 PPM

Copper: 8.36 PPM

Nickel: 0.35 PPM

Iron: 40.66 PPM

Glycol: NEG

Water: NEG

Fuel: <5%
