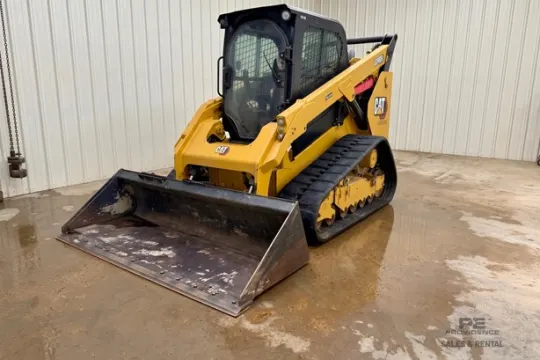

2020 Caterpillar 289D3

1436 hours
Ships nationwide
#B5814447

+32 more

2020 Caterpillar 289D3

1436 hours
Ships nationwide
#B5814447

Asking Price$54,972

Est. Loan Payment

Price excludes taxes, fees, and shipping

Powerhouse Protection
Our buyer guarantee protects your purchase against anything missed during inspection.

About this equipment

Machine highlights Year: 2020 Make: Caterpillar Model: 289D3 Cab standard flow Smooth Bucket AC / HEAT 2 Speed 74.3HP Tipping Load: 8,255lbs Operating Weight:10,688lbs Hours: 1436 SN: CAT0289DJJX904343 Warranty EXTENDED WARRANTY AVAILABLE FOR PURCHASE Ask one of our salesmen for more information! Engine Engine Model Cat C3.3B DIT (turbo) Gross Power SAE J1995 55.4 kW 74.3 hp Net Power SAE 1349 54.4 kW 72.9 hp Net Power ISO 9249 54.9 kW 73.7 hp Peak Torque at 1,500 rpm SAE J1995 265 N-m 195 Ibf-ft Displacement 3.3 L 203 in? Stroke 120 mm 4.7 in Bore 94 mm 3.7 in Weights Operating Weight : 10,688lbs Power Train Travel Speed (Forward or Reverse): One Speed 7.2 km/h 4.5 mph Two Speed 13.3 km/h 8.3 mph Hydraulic system Hydraulic Flow - Standard: Loader Hydraulic Pressure 23000 kPa 3,335 psi Loader Hydraulic Flow 86 L/min 23 gal/min Hydraulic Power 57KW 76 hp Operating Specifications Rated Operating Capacity 35% Tipping Load : 2.890lbs 50% Tipping Load :4,30lbs Tipping Load : 8,255lbs Breakout Force, Tilt Cylinder : 7,291 lbs Ground Contact Area (450 mm/17.7 in track) 2,272 in2 Ground Pressure (450 mm/17.7 in track) 4.7 psi Service Refill Capacities Cooling System 3.7 gal Engine Crankcase 3.0 gal Fuel Tank 27.7 gal Hydraulic System 13.7 gal Hydraulic Tank 10.3 gal Dimensions Length of track on ground : 64.2in Overall Length of track : 83.8in Length without bucket : 117.9in Length with bucket on ground : 146.2in Height to top cab : 83.2in Maximum Overall height : 158.1in Bucket pin height at maximum lift : 125.1in Bucket pin height at carry position : 7.5in Reach at maximum lift and dump : 30.0n Clearance at maximum lift and dump :94.0in Ground Clearance 8.9in Departure Angle 33deg Maximum Dump Angle : 51deg Vehicle width :78.0in Turning Radius from center - machine bar : 70.7in Turning Radius from center - coupler : 55.5in Turning Radius from center - Bucket 88.8in Maximum Reach with arms parallel to ground :50.0in Rack back angle at maximum height 84deg Bucket Pin reach at maximum lift 14.5in 2020 CATERPILLAR 289D3 CAB STANDARD FLOW SKID STEER WITH SMOOTH BUCKET, AC/HEAT, 2 SPEEDS, TIPPING LOAD OF 8255LB AND OPERATING WEIGHT OF 10688LB. EXTENDED WARRANTY AVAILABLE FOR PURCHASE. ASK ONE OF OUR SALESMEN FOR MORE INFORMATION! SE HABLA ESPAÑOL! FINANCING AVAILABLE PLEASE CALL US WITH ANY QUESTIONS! ASK ABOUT OUR REASONABLE SHIPPING RATES!

Features

AI-Generated: Verify machine specs, features, and operability prior to purchasing.

Enclosed Cab with HVAC (Heating, Ventilation, and Air Conditioning)
Electro-Hydraulic Joystick Controls
Heated Suspension Seat (Optional)
Advanced Display with Backup Camera Integration
High Flow XPS Hydraulic System (Optional)
Ride Control (Optional)
Automatic Engine Speed Control (Auto-Idle)
Quick Coupler for Rapid Attachment Changes
Sealed and Pressurized Cab for Reduced Noise and Dust Intrusion
Deluxe Instrumentation Panel with Security System and Keyless Start
LED Projector Headlights (Optional)
Two-Speed Travel with Electronic Torque Management
100% Pilot Control (Handles and Foot Pedal)
High-Intensity Discharge (HID) Lights (Optional)
Advanced Machine Information and Control System (AMICS)

Specifications

AI-Generated: Verify machine specs, features, and operability prior to purchasing.

Bucket : Yes
Fuel Capacity : 27.7 gal
Operating Capacity : 4,103 lb
Operating Weight : 10,688 lb
Tipping Load : 8,255 lb
Ground Pressure : 4.7 psi
Breakout Force : 7,291 lb
Standard Hydraulic Flow : 23 gpm
ROPS : Enclosed
A/C : Yes
Heater : Yes
Two-Speed : Yes
Travel Speed : 4.5 mph
Travel Speed - 2-Speed Option : 8.3 mph
Ground Clearance : 8.9 in
Length w/o Bucket : 117.9 in
Length with Bucket : 146.2 in
Height to Top of ROPS : 83.2 in
Width w/o bucket : 78 in
Horsepower : 74.3 HP
Shipping Length : 146.2 in
Shipping Width : 78 in
Shipping Height : 83.2 in
Shipping Weight : 10,688 lb

Digital Glovebox

For your convenience, we've included these documents free to download so you can make the best decision.

Close-up detailed photos

Listings may picture specialty attachments not included in the sale. If you have questions about machine configuration, contact our sales team.
