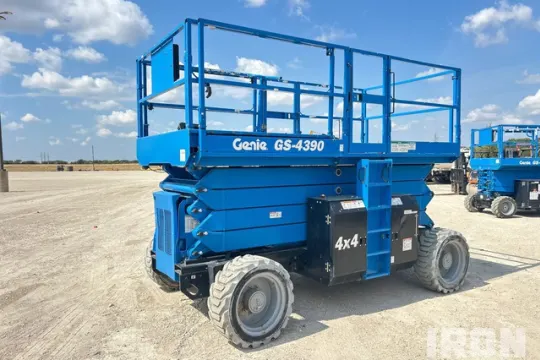

2020 Genie GS-4390 Diesel 4x4 Scissor Lift

2786 hours
Ships nationwide
United States
#A2220049

IronClad Assurance
Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.
No Payments For 90 Days
Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

About this equipment

The 2020 Genie GS-4390 is a robust scissor lift designed to meet the needs of various elevated tasks in construction, maintenance, and industrial environments. It showcases a considerable 43 ft maximum platform height and a strong weight capacity of up to 1500 lbs, which makes it ideal for multiple personnel and equipment. Equipped with a Deutz D2.9L4 4-cylinder diesel engine delivering 36.4 kW of power, this unit provides reliable performance and efficiency. Its non-marking tires minimize damage to delicate surfaces, and the platform includes extensions and power access for enhanced functionality and flexibility in use. Additional features such as the upper control box and a 2019 US EPA label underline its compliance with environmental standards, making it a preferable choice for both outdoor and indoor applications.

Listings may picture attachments not included in the sale. Contact our sales team to confirm features, specs, and machine configuration.

Features

43 ft Max Platform Height
1500 lb Max Weight Capacity
Platform Extension
Power to Platform
Non-Marking Tires
Upper Control Box
2019 US EPA Label
Deutz D2.9L4 4 Cylinder 36.4 kW 2.9 L Diesel Engine

Specifications

Engine Power: 75 hp
Fuel Type: Diesel
Lift Capacity: 1,500 lbs
Working Height: 49 ft
Platform Height: 43 ft
Horizontal Reach: Not applicable
Machine Width: 7.5 ft
Machine Length: 14.5 ft
Machine Weight: 13,200 lbs
Gradeability: 30%
Drive Speed: 4.0 mph
Ground Clearance: 12 in
Serial Number / VIN: GS90F-55438
Hour Meter / Odometer: 2786 hrs
Sheet Metal (fiberglass) Condition: Damage In Front
Travel Alarm: Operational
Horn: Operational
Current Safety Manual: No
Current Operator/Maintenance Manual: Yes
ANSI Guidelines: No
Gauges: Operational
Engine Oil Pressure: The fault indicator shuts off after the engine oil pressure rises.
Warning Lights: Operational
Limited Function Check: The main components are in place and operational as noted.
Emergency Shut Off Switch: Operational
Safety Control Hand/Foot Switch: Operational
Emissions Status: 2019 US EPA Label
Blow-by (subjective visual observation): Minor Video capture could not be performed
Starter: Operational
Fuel System: Operational
Oil Leaks: No dripping leaks
Fuel Leaks: No dripping leaks
Cooling System Leaks: No dripping leaks
Limited Function Check: The engine started and ran.
Limited Function Check: The drivetrain was operational.
Limited Function Check: The hydraulic system was operational.
Brake System: The brake system functioned, stopping and holding the machine.
Left Front Tire: Cracks, Chunks missing
Left Rear Tire: Cracks, Chunks missing
Right Rear Tire: Cracks, Chunks missing
Right Front Tire: Cracks, Chunks missing
Wheel Condition: No visible damage or missing components
Limited Function Check (Scissor-lift): The main components functioned with minor wear throughout.
