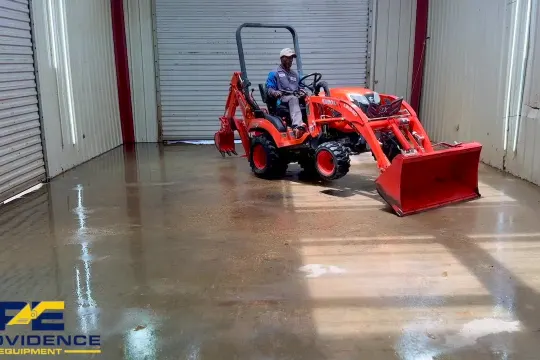

2020 KUBOTA BX23

475 hours
Ships nationwide
#A2877851

+7 more

2020 KUBOTA BX23

475 hours
Ships nationwide
#A2877851

Asking Price$16,700

Tax Benefits

$3,507

Price with tax savings$13,193

Est. Loan Payment

Price excludes taxes, fees, and shipping

About this equipment

Machine Highlights Year: 2020 Make: Kubota Model: BX23 OROPS 4x4 Loader Manual Backhoe Gross Power: 23HP Operating Weight: 2,176LBS Hours: 475 Serial Number: KBUC1DHRELGK45654 Warranty EXTENDED WARRANTY AVAILABLE FOR PURCHASE Ask one of our salesman for more information! Engine: Make: Kubota Model: D902 Engine Type: Liquid-cooled, 3-cylinder diesel Gross Power: 23HP Power Measured @: 3200rpm Displacement: 54.8cu in PTO horsepower: 17.7HP Operational: Operating Weight: 2,176lb Fuel Capacity: 6.6gal 3 Point Hitch Type: Optional 3 Point Hitch Lift Capacity @ 24 inches: 683.5lb Turning Radius: 7.6ft in Transmission: Live independent PTO (with hydraulic clutch) Transmission Type: HST, High-Low gear shift ( 2 forward / reverse Max Speed – Forward: 8.4mph Max Speed Reverse: 6.6mph Hydraulic: Steering type: Hydraulic power steering Pump Flow Capacity: 6.2gal/min Brakes: Brakes Type: Wet disc Dimensions: Overall length with 3-point hitch: 8.3ft in Width: 45.1in Front Tread Range: 36.7in Rear Tread Range: 32.3in Height with ROPS: 7.2ft in Wheelbase: 4.6ft in Ground Clearance: 0.7ft in Loader Height (to pin) 71” Clearance, dumped bucket: 52.1” Dump reach: 25.4” Dump angle: 45° Reach at ground: 54.8” Rollback angle 29° Breakout force: 987LBS Lift to full height (at pin): 739LBS Lift to full height: 509LBS Bucket width: 48” Kubota BT603 Backhoe Make: Kubota Model: BT603 Backhoe Weight: 607LBS Transport height: 67.7” Digging depth: 73” Reach from pivot: 103” Loading height: 60 inches Bucket Rotation: 180 Swing Arc: 140 Bucket force: 1,936LBS Dipperstick force: 1,171LBS 2020 KUBOTA BX23 4X4, OROPS LOADER BACKHOE TRACTOR WITH MANUAL BACKHOE AND LOW HOURS! EXTENDED WARRANTY AVAILABLE FOR PURCHASE. ASK ONE OF OUR SALESMAN FOR MORE INFORMATION! SE HABLA ESPAÑOL! CALL US WITH ANY QUESTIONS! FINANCING AVAILABLE! ASK ABOUT OUR REASONABLE SHIPPING RATES!

Features

AI-Generated: Verify machine specs, features, and operability prior to purchasing.

Hydrostatic Transmission
4WD Capability
Power Steering
ROPS (Roll-Over Protective Structure)
Quick Attach/Detach Loader System
Backhoe with Extendable Dipper Arm (Optional)
High-Back Suspension Seat
Hydraulic Independent PTO
Three-Point Hitch
Halogen Work Lights
Tool Box for Storage
Optional Thumb Attachment for Backhoe
Optional Heated Cab
Flat Operating Platform for Easy Access
12V Outlet for Accessories

Specifications

AI-Generated: Verify machine specs, features, and operability prior to purchasing.

Number of Back Attachments : 1
Back Bucket Width : 12 in
Number of Front Attachments : 1
Fuel Capacity : 6.6 gal
Operating Weight : 1,569 lb
Back Lift Capacity : 680 lb
Back Breakout Force : 1,936 lb
Back Dig Depth : 73 in
Back Dig Depth Extended : 103 in
Outriggers : Yes
Front Lift Capacity : 509 lb
Front Breakout Force : 987 lb
ROPS : Open
Seat Type : Suspension
Horsepower : 23 HP
Drive : 4WD
Travel Speed : 8.4 mph
Shipping Length : 95.5 in
Shipping Width : 44.1 in
Shipping Height : 81.9 in
Shipping Weight : 1,570 lb

Digital Glovebox

For your convenience, we've included these documents free to download so you can make the best decision.

Close-up detailed photos

Listings may picture specialty attachments not included in the sale. If you have questions about machine configuration, contact our sales team.
