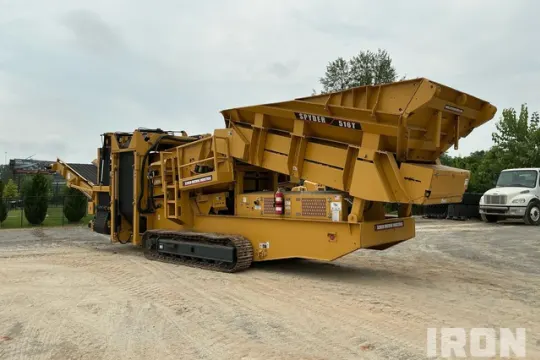

2020 Screen Machine Industries Spyder 516T Tracked Incline Screen Plant

Cat C4.4 4.4 L Diesel Engine

8 ft x 16 ft Belt Feeder 16 ft x 5 ft Double Deck Screen

48 in Wide Feed Conveyor

48 in Wide Under Screen Conveyor

24 in Wide Left Discharge Conveyor

36 in Wide Right Discharge Conveyor

48 in Wide End Discharge Conveyor

Radio Remote Control

16 in Triple Grouser Track Shoes

Serial Number / VIN: 516T-1130

Hour Meter / Odometer: 716 hrs

Gauges: Operational

Limited Function Check: The main components are in place and operational as noted.

Emissions Status: No US EPA Label Present

Blow by @ idle (subjective visual observation): Minor

Starter: Operational

Oil Leaks: No dripping leaks

Limited Function Check (Engine): After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting.

Power Travel Drive System: Travels properly

Limited Function Check: The hydraulic system was operational.

Feed Hopper: Length @ top: 16’, Width @ top: 8’

Feed Conveyor Drive Motor: Not operationally checked

Discharge Conveyor Drive Motor: Not operationally checked

Screen Deck: Incline screen, Number of decks: 2

Left Grouser Height: 20 mm

Left Track Bushings: Bushings have not been turned

Right Grouser Height: 20 mm

Right Track Bushings: Bushings have not been turned
