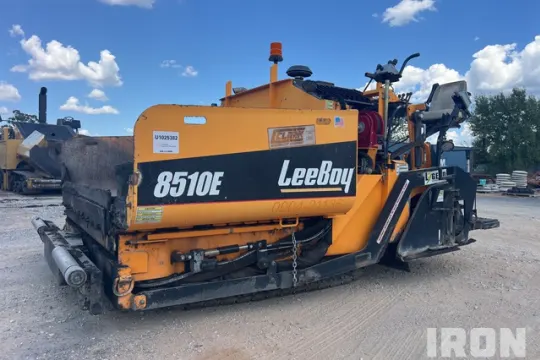

2021 LeeBoy 8510E Track Asphalt Paver

1673 hours
Ships nationwide
United States
#A4991963

IronClad Assurance
Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.
No Payments For 90 Days
Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

About this equipment

The 2021 Leeboy 8510E is a robust track asphalt paver designed for high-efficiency paving operations. It features dual controls allowing for flexibility and ease of operation from both sides of the unit. The electric heated 8 ft - 16 ft screed provides adjustable temperature settings to meet various material and environmental conditions, ensuring superior material handling and smooth finishes. This paver also includes 14-inch triple grouser track shoes with rubber pads that enhance mobility and stability on diverse terrains, while minimizing surface damage. Completing its environmentally conscious design, the paver comes equipped with a 2021 US EPA label indicating compliance with Tier 4 emission standards, making it a reliable choice for projects requiring stringent environmental adherence. With a total of 1673 operational hours, this equipment is ready to tackle a range of paving tasks.

Listings may picture attachments not included in the sale. Contact our sales team to confirm features, specs, and machine configuration.

Features

Dual Controls
Tier 4
2021 US EPA Label
Electric Heated 8 ft - 16 ft Screed
14 in Triple Grouser Track Shoes w/Rubber Pads

Specifications

Engine Power: 131 hp
Displacement: 276 cu in
Operating Weight: 21,000 lbs
Fuel Tank Capacity: 36 gal
Paving Width - Max: 15 ft
Paving Thickness - Max: 12 in
Hopper Capacity: 7.5 tons
Transport Width: 8.5 ft
Transport Height: 10 ft
Transport Length: 19 ft
Serial Number / VIN: 321136
Hour Meter / Odometer: 1673 hrs
Oil Pressure: The fault indicator shuts off after the engine oil pressure rises.
Warning Lights: Operational
Screed Control Switches: Operational
Gauges: Operational
Limited Function Check: The main components are in place and operational as noted.
Engine: 2021 US EPA Label
Blow-by (subjective visual observation): Minor
Starter: Operational
Oil Leaks: No dripping leaks
Fuel Leaks: No dripping leaks
Cooling System Leaks: No dripping leaks
Limited Function Check: The engine started and ran.
Transmission: Operational
Limited Function Check: The drivetrain was operational.
Screed Vibrators: Operational
Limited Function Check: The hydraulic system was operational.
Screed Serial Number: NA
Screed Heaters: Not operationally checked
Screed Slope Adjustment: Manual adjustment
Screed Tow Point Adjustment: Powered adjustment
Mat Thickness Adjusters: Manual adjustment
Spray Down System: Not operationally checked
Limited Function Check: The main components were operational in a limited check.
Left Grouser Height: 20 mm
Right Grouser Height: 20 mm

Digital Glovebox

For your convenience, we've included these documents free to download so you can make the best decision.

Close-up detailed photos

Inspection Report
