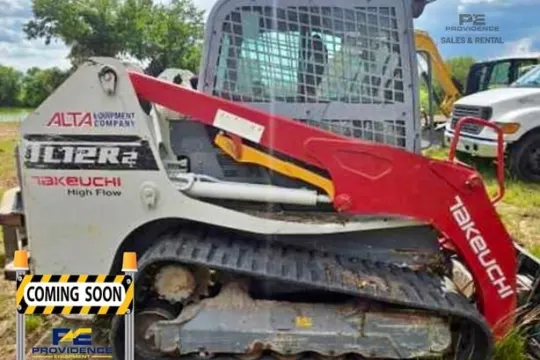

2021 Takeuchi TL12R2

About this equipment

Machine Highlights Year: 2021 Make: Takeuchi Model: TL12R2 Cab High Flow Joystick controls Smooth bucket AC/Heat 2-speed Operating weight: 12,590lbs 111.3HP Hours: 1439 SN: 412103480 Warranty EXTENDED WARRANTY AVAILABLE FOR PURCHASE Ask one of our salesmen for more information! Engine Make / Model: Kubota / V3800TIF4B-Turbo Intercooled Engine Displacement 230 cu in Horsepower @ 2,400 rpm 111.3 hp Maximum Torque @ 1,500 rpm 276 ft-lb Hydraulic System Auxiliary Flow - Primary Circuit 23.2 gpm Auxiliary Flow - High Flow (optional) 40.4 gpm Auxiliary Flow - Secondary Circuit (optional) 23.2 gpm Hydraulic System Pressure 3,481 psi Operating Performance Operating Weight - Cab 12,590 lb Tipping Load 8,629 lb Rated Operating Capacity (ISO 14397-1) @35%* 2,975 lb Operating Capacity w/ Opt Counterweight 3,291 lb Operating Load @ 50% of Tip Load 4,315 lb Bucket Breakout Force 8,210 lb Lift Arm Breakout Force 8,075 lb Traction Force 14,010 lb Ground Pressure - Canopy 4.58 psi Ground Pressure - Cab 4.68 psi Travel Speed - Low 5.0 mph Travel Speed - High 7.3 mph Fluid Capacities Engine Lubrication 13.9 qt Cooling System 19.0 qt Fuel Tank Capacity 31.6 gal DEF Fluid Tank Capacity 4.8 gal Fuel Consumption (65% of Full Load) 3.8 gal/hr Hydraulic Reservoir Capacity 13.2 gal Hydraulic System Capacity 20.9 gal Dimensions Max. Lift Height to Bucket Pin 10 ft 6.0 in Dump Height Fully Raised 7 ft 10.5 in Dump Reach Fully Raised 3 ft 1.8 in Dump Angle 42° Rollback Angle 30° Track Ground Contact Length 5 ft 7.5 in Machine Length 10 ft 6.2 in Transport Length 13 ft 3.3 in Transport Height 7 ft 7.0 in Departure Angle 30° Clearance Circle with Bucket 8 ft 4.6 in Clearance Circle without Bucket 5 ft 4.4 in Clearance Circle Rear 6 ft 0 in Track Width 17.7 in Ground Clearance 12.5 in Overall Width without Bucket 6 ft 5.2 in 2021 TAKEUCHI TL12R2 CAB HIGH FLOW SKID STEER WITH JOYSTICK CONTROLS, SMOOTH BUCKET, AC/HEAT, 2-SPEED AND AN OPERATING WEIGHT OF 12,590LBS! EXTENDED WARRANTY AVAILABLE FOR PURCHASE. ASK ONE OF OUR SALESMEN FOR MORE INFORMATION! SE HABLA ESPAÑOL! FINANCING AVAILABLE PLEASE CALL US WITH ANY QUESTIONS! ASK ABOUT OUR REASONABLE SHIPPING RATES!
