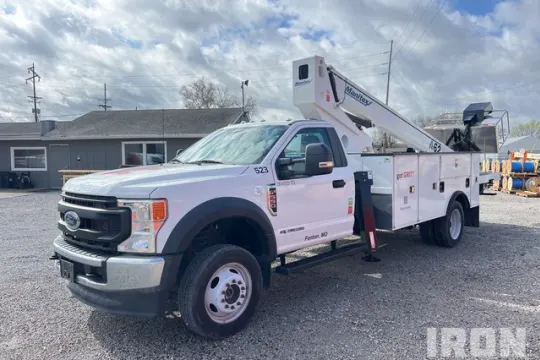

2022 Manitex A62 62 ft on 2022 Ford F-550 XL 4x4 Bucket Truck

Ford Powerstroke V8 6.7 L Diesel Engine

2022 US EPA Label

Requires Diesel Exhaust Fluid

Air Conditioner

Cruise Control

Power Windows

Exhaust Brake

Automatic Transmission

7500 lb Front Axle

14706 lb Rears

19500 lb GVWR

225/70R19.5

Spring Suspension

193 in Wheelbase

PTO

550 lb Capacity

Center Mounted

Two-Person Telescopic Boom

Utility Body

Straight Down Outriggers

Rear Outriggers

16 ft x 94 in Bed

Engine Power: 330 hp

Engine Type: 6.7L Power Stroke V8 Turbo Diesel

Fuel Type: Diesel

Transmission: 10-Speed Automatic

Drivetrain: 4x4

Wheelbase: 145 inches

Payload Capacity: 6,000 lbs

Towing Capacity: 19,500 lbs

Curb Weight: 7,500 lbs

Height: 108 inches

Width: 96 inches

Fuel Tank Capacity: 40 gallons

Bucket Reach: 35 feet

Bucket Load Capacity: 350 lbs

Serial Number / VIN: 1FDUF5HT4NDA09758

Hour Meter / Odometer: 26042 mi

Motor Vehicle Safety Standards Label: Yes

Exterior Lights: Operational

Steer Axle: T-LI-D0: 14/32"|T-RI-D0: 13/32"|Disc: B-L-D|Disc: B-R-D|Steel: T-LI-D|Steel: T-RI-D

Rear Axle: T-LO-D0: 9/32"|T-LI-D0: 9/32"|T-RI-D0: 9/32"|T-RO-D0: 9/32"|Disc: B-L-D|Disc: B-R-D|Steel: T-LO-D|Steel: T-LI-D|Steel: T-RI-D|Steel: T-RO-D

Emissions Information: 2022 US EPA Label, Requires Diesel Exhaust Fluid

A/C Compressor: In place; ambient temperature too cold to check operation

Blow-by (subjective visual observation): No noticeable vapor or pressure

Starter: Operational

Fuel System: Operational

Oil Leaks: No dripping leaks

Fuel Leaks: No dripping leaks

Cooling System Leaks: No dripping leaks

Limited Function Check: The engine started and ran.

Window Controls: Both Power

Seat Belts: Operational

Horn: Electric horn operational

Oil Pressure: The gauge registers in the operating range.

Warning Lights: Operational

Gauges: Operational

Brake Control: Operational

Engine Brake: Not operationally checked

PTO Control: Operational

Air Conditioner: The ambient temperature is too cold to check.

Heater: Operational

Limited Function Check: The main components are in place and operational as noted.

Transmission: Operational

Power Take Off: Operational

Limited Function Check: The drivetrain was operational.

Limited Function Check: The hydraulic system was operational.

Limited Function Check: The main chassis components were operational in a limited check.

Tool / Work Box: Painted to match body

Brake Type: Hydraulic brakes

Park Brake: Held against power

Limited Function Check - Brakes: The brake system functioned, stopping and holding the machine.

Dielectric Certification: There was no Dielectric Certification label located on the machine

date of analysis: Apr 10, 2026

Silicon: 0.71 PPM

Tin: 0.66 PPM

Silver: 0 PPM

Aluminum: 2.55 PPM

Chromium: 1.09 PPM

Lead: 1.59 PPM

Copper: 4.7 PPM

Nickel: 0.56 PPM

Iron: 14.89 PPM

Glycol: NEG

Water: NEG

Fuel: <5%
