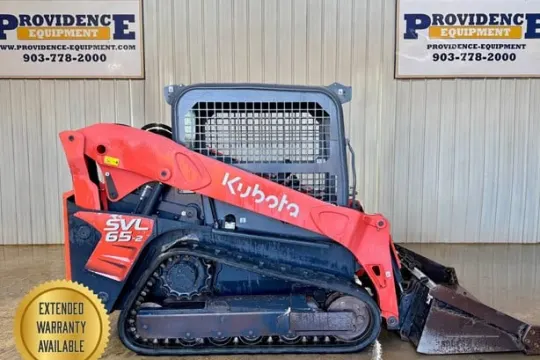

2022 KUBOTA SVL65-2

1730 hours
Ships nationwide
#A4012428

+44 more

2022 KUBOTA SVL65-2

1730 hours
Ships nationwide
#A4012428

No longer available

View more Compact track loaders

Powerhouse Protection
Our buyer guarantee protects your purchase against anything missed during inspection.

About this equipment

Machine Highlights Year: 2022 Make: Kubota Model: SVL65-2 OROPS 2-Speed Joystick Controls Standard Flow Tipping Load: 6,000LBS Operating Weight: 8,035LBS Hours: 1728 Serial Number: KBCZ021CHN1C19297 Warranty Emissions warranty until 08/15/2027 or 3,000 hours EXTENDED WARRANTY AVAILABLE FOR PURCHASE Ask one of our salesman for more information! Engine: Model: V2607-CR-TE4 Gross HP: 68.4 HP Net HP: 62.5 HP Displacement: 159.6 cu. in. Cylinders: 4 Bore x Stroke: 3.4” x4.3” Aspiration: Turbocharged Loader Performance: Rated Operating Capacity-35% tipping load: 2100 lbs. Rated Operating Capacity-50% tipping load: 3000 lbs. Tipping Load: 6000 lbs. Breakout Force-Bucket: 4614 lbf. Breakout Force-Lift Arm: 4266 lbf. Operating Weight: 8035lbs Undercarriage: Track Width-Std: 12.6” Track Width-Wide: 15” Ground Pressure-Std: 4.9 psi Ground Pressure-Wide: 4.4 psi Track Rollers (per side): 4 Track Ground Contact Length: 57.9” Travel Speed-Low: 4.9 mph Travel Speed-High: 7.1 mph Min. Ground Clearance: 9.2” Hydraulics: Auxiliary Hydraulic Flow: 17.4 gpm Auxiliary Hydraulic Pressure: 3263 psi Service Refill Capacities: Hydraulic System: 13.2 gal Hydraulic Tank: 5.4 gal Fuel Tank: 21.7 gal Dimensions: Length of Track on Ground: 57.9” Track Gauge: 52.6” Length w/o Bucket: 107.3” Length w/ Bucket on Ground: 136.4” Height to Top of Cab: 79.9” Bucket Hinge Pin Height at Max. Lift: 118.5” Rollback Angle at Carry Position: 30 degrees Reach at Max. Lift and Dump: 34.9” Ground Clearance: 9.2” Departure Angle: 30 degrees Max. Dump Angle: 40 degrees Vehicle Width Std/Wide Track: 65.2”/67.6” Width w/ Bucket Std/Wide: 68”/74” Turning Radius from Center-Machine Rear: 57.1” 2022 KUBOTA SVL65-2 STANDARD FLOW OROPS SKID TRACK STEER LOADER, JOYSTICK CONTROLS, 2 SPEED, WITH OPERATING WEIGHT OF 8035LBS. EMISSIONS WARRANTY UNTIL 08/15/2027 OR 3,000 HOURS. EXTENDED WARRANTY AVAILABLE FOR PURCHASE. ASK ONE OF OUR SALESMAN FOR MORE INFORMATION! SE HABLA ESPAÑOL! FINANCING AVAILABLE! PLEASE CALL US WITH ANY QUESTIONS! ASK ABOUT OUR REASONABLE SHIPPING RATES!

Features

AI-Generated: Verify machine specs, features, and operability prior to purchasing.

Enclosed Cab with HVAC
High Flow Hydraulics (optional)
Advanced Display with Diagnostics
Pilot Controls with Adjustable Sensitivity
Electro-hydraulic Quick Coupler
Ride Control
Two-Speed Travel
LED Work Lights
Auto-Idle Functionality
Suspension Seat
Reversing Fan (optional)
Rearview Camera
Anti-theft System
Sealed and Pressurized Cab for Dust Reduction
Multi-function Joystick Controls

Specifications

AI-Generated: Verify machine specs, features, and operability prior to purchasing.

Bucket : Yes
Fuel Capacity : 21.7 gal
Operating Weight : 8,035 lb
Auxiliary Hydraulics : Yes
Coupler : Yes
Quick Attach : Yes
Tipping Load : 6,000 lb
Ground Pressure : 4.9 psi
Operator Type : Standard
Lift Type : Vertical
Breakout Force : 4,614 lb
Standard Hydraulic Flow : 17.4 gpm
Track Type : Rubber
ROPS : Open
Operator Controls : Hand
Two-Speed : Yes
Travel Speed : 4.9 mph
Travel Speed - 2-Speed Option : 7.1 mph
Ground Clearance : 9.2 in
Horsepower : 65 HP
Engine Manufacturer : Kubota
Fuel Type : Diesel
Engine Turbo : Yes
Engine Tier : USA Tier 4
Shipping Length : 136.4 in
Shipping Width : 65.2 in
Shipping Height : 79.9 in
Shipping Weight : 8,035 lb

Digital Glovebox

For your convenience, we've included these documents free to download so you can make the best decision.

Close-up detailed photos

Listings may picture specialty attachments not included in the sale. If you have questions about machine configuration, contact our sales team.
