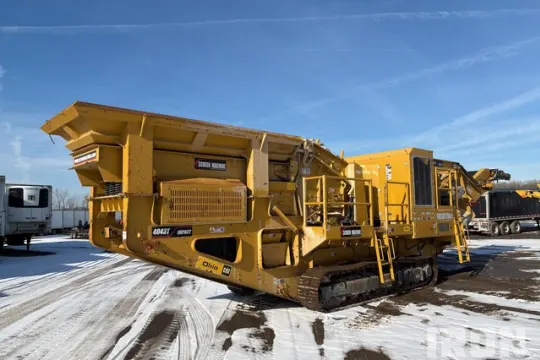

2022 Screen Machine 4043T

2019 US EPA Label

Cat C9.3B 6 Cylinder 375 hp 9.3 L Diesel Engine

Requires Diesel Exhaust Fluid

3 ft 4 in x 13 ft Vibratory Grizzly Feeder 40 in Impact Crusher

41.25 in Wide Under Crusher Conveyor

41.25 in Wide End Discharge Conveyor

Radio Remote Control

19.75 in Triple Grouser Track Shoes

Serial Number / VIN: 4043T-1217

Hour Meter / Odometer: 1248 hrs

Gauges: Operational

Limited Function Check: The main components are in place and operational as noted.

Emission Certification Label: Not legible

Block Heater: No

Blow by @ idle (subjective visual observation): No noticeable vapor or pressure

Starter: Operational

Oil Leaks: No dripping leaks

Fuel Leaks: No dripping leaks

Cooling System Leaks: No dripping leaks

Limited Function Check (Engine): The engine started and ran.

Auxiliary Hydraulic Plumbing: Not operationally checked, Rear

Power Travel Drive System: 2 Travel Speeds, Feels weak, Weak when steering

Limited Function Check: The hydraulic system was operational.

Feed Hopper: Length @ top: 14’ 1”, Width @ top: 5’11”

Crusher Drive System: Not functionally checked, Main conveyor belt was froze to machine would not rotate or let crusher engage

Discharge Conveyor Drive Motor: Not operationally checked, Belt was froze to machine motor was engaging

Left Grouser Height: 27 mm

Left Track Bushings: Bushings have not been turned

Right Grouser Height: 25 mm

Right Track Bushings: Bushings have not been turned

date of analysis: Jan 08, 2026

Silicon: 1.08 PPM

Tin: 1.72 PPM

Silver: 0 PPM

Aluminum: 0.5 PPM

Chromium: 0.29 PPM

Lead: 0.7 PPM

Copper: 1.3 PPM

Nickel: 0.63 PPM

Iron: 10.18 PPM

Glycol: NEG

Water: NEG

Fuel: <5%
