Engine

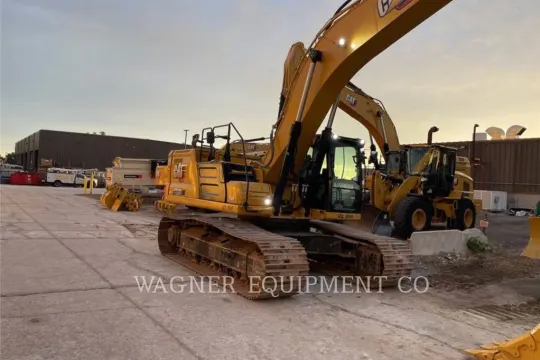

340 08 EXCAVATOR ARRANGEMENT

482 GD 9/23/24

BATTERY, COLD WEATHER

BEACON SOCKET

BEARING, SWING HD

BLOCK HEATER, 120V

BOOM TUBE W/EOU

BOOM, REACH 21'4" HD, EOU

CAB MOUNT, ROPS

CAB, DELUXE

CAMERA, 360 VISIBILITY

COMMON ARR

CONSISTS OF:

CONTROL, QC

COOLANT, COLD WEATHER

COUNTERWEIGHT 16,667LBS

COUPLER, PIN GRABBER DB W/PINS

COVER, REAR HEADER

CYLINDER, BKT DB

CYLINDER, BOOM

CYLINDER, STICK

DOOR, RADIATOR W/O SCREEN

DRINK HOLDER

END OF CONSISTS

ETHER STARTING AID

FAN, REVERSE

FILM, EMC

FILM, INTERIOR, ANSI

FILM, OPERATING PATTERN, 2WAY

FILM, ROPS CERTIFICATION

FILM, STICK WARNING, ANSI

FILM,EXTERIOR,ANSI

FINE SWING

FRAME, SWING, HD

GRADE 2D ASSIST & PAYLOAD

GRADE SENSOR, R12'10" STICK

GRADE SENSOR, REACH BOOM

GUARD, BOTTOM HD

GUARD, SWIVEL

GUARD, TRACK GUIDE SEGMENTED

GUARD, TRAVEL MOTOR HD

HYD PKG, HL ADV 2WAY

INTEGRATED RADIO, W/O DAB

JOYSTICK STEER + AUX RELAY PKG

LIGHT, CHASSIS

LIGHTS, CAB, W/RAIN PROTECTOR

LIGHTS, REACH BOOM RH & LH

LINE,COOLING,W/O INLET AIR HTR

LINES, A/C

LINES, DRAIN, PG QC

LINES, HP, REACH BOOM

LINES, QC, REACH BOOM

LINES-HP, R12'10" STICK

LINES-QC, R12'10" STICK

LINKAGE, BKT DB W/EYE GRADE

MACHINE ECM

MIRROR, CAB, W/O GUARD

MIRROR, RH SIDE, FRONT & REAR

MONITOR, 10"

NETWORK MANAGER, A6N1

Online Owner's Manual

PEDAL, STRAIGHT TRAVEL

PROD LINK, PLE643/PLE743 RADIO

QUICK DRAINS READY

RECEIVER, BLUETOOTH

ROLLER, TRACK

SENSOR, PRESSURE, EOU

STICK, R12'10" DB, HD ,EOU

SUN SCREEN, REAR

SWITCH, DISCONNECT W/O JS

TRACK, 33" TG

TRAVEL, ALARM

UC, LONG WIDE

WIPER, RADIAL W/O LOWER

WIRING, 340 HRC DX/PREMIUM

Engine Power: 311 hp

Displacement: 568 cu in

Operating Weight: 80000 lb

Fuel Capacity: 163.8 gal

Hydraulic System Fluid Capacity: 108.3 gal

Bucket Capacity (min-max): 1.4 - 3.0 yd³

Max Digging Depth: 26.9 ft

Max Reach Along Ground: 39.5 ft

Max Cutting Height: 32.6 ft

Max Loading Height: 22.2 ft

Tail Swing Radius: 11.1 ft

Track Width: 24.0 in

Manufacturer's Recommended Maximum Operating Weight: 82290 lb

Net Power - ISO 9249: 273 hp

Emissions: Meets U.S. EPA Tier 4 Final emission standards
