2023 Caterpillar D3 LGP

2618 hours
Ships nationwide
USA
#A9082649

284

+281 more

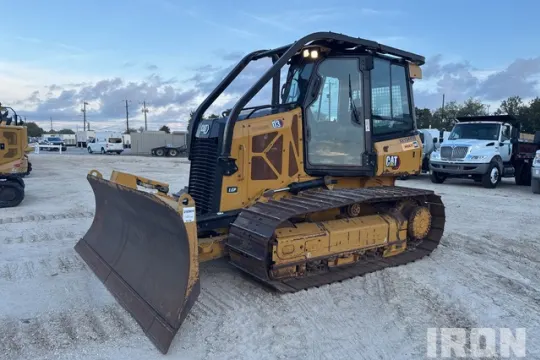

2023 Cat D3 LGP Crawler Dozer

2618 hours
Ships nationwide
United States
#A9082649

IronClad Assurance
Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.
No Payments For 90 Days
Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

About this equipment

The 2023 Caterpillar D3 LGP is a robust bulldozer equipped to handle demanding tasks with its 126-inch wide PAT blade and SystemOne undercarriage, designed for longevity and reduced maintenance. This unit features an open operator station that ensures easy access and visibility during operation. It's fitted with 26-inch single grouser track shoes that enhance traction and stability on diverse terrains. Additional features such as sweeps protect the machinery from debris, making it suitable for a variety of working environments. With 2618 hours logged, this Caterpillar D3 LGP is a powerful choice for your heavy-duty earthmoving needs.

Listings may picture attachments not included in the sale. Contact our sales team to confirm features, specs, and machine configuration.

Features

Open Operator Station
Requires Diesel Exhaust Fluid
126 in Wide PAT Blade
Sweeps
26 in Single Grouser Track Shoes
SystemOne Undercarriage

Specifications

Engine Power: 104 kW (139 hp)
Operating Weight: 20,313 lbs
Fuel Capacity: 51.5 gallons
Blade Width: 124 in
Blade Capacity: 2.4 yd³
Ground Pressure: 4.3 psi
Transmission: Hydrostatic
Track Width: 25 in
Displacement: 269 cu in
Maximum Forward Speed: 5.6 mph
Maximum Reverse Speed: 6.2 mph
Serial Number / VIN: CAT000D3JXKY04450
CE Mark: No CE mark found
Hour Meter / Odometer: 2618 hrs
Exterior Lights: Operational
Travel Alarm: Operational
Horn: Operational
Seat Belts: Operational
Current Safety Manual: Yes
Current Operator/Maintenance Manual: Yes
Engine Oil Pressure: The fault indicator shuts off after the engine oil pressure rises.
Warning Lights: Operational
Gauges: Operational
Air Conditioner: Operational
Heater: Not operationally checked
Limited Function Check: The main components are in place and operational as noted.
Engine: No US EPA Label Present Requires Diesel Exhaust Fluid
A/C Compressor: Operational
Blow-by (subjective visual observation): Significant Video capture could not be performed
Starter: Operational
Oil Leaks: No dripping leaks
Fuel Leaks: No dripping leaks
Cooling System Leaks: No dripping leaks
Limited Function Check: The engine started and ran.
Transmission: Operational
Limited Function Check (Drivetrain-Track): The drivetrain was operational without a load.
Limited Function Check: The hydraulic system was operational.
Limited Function Check (dozer): The main components were operational in a limited check.
Left Grouser Height: 32 mm
Left Track Bushings: Bushings have not been turned
Right Grouser Height: 34 mm
Right Track Bushings: Bushings have not been turned
