2023 Sany SY225CLC

  • 584 hours
  • Ships nationwide
  • USA
  • #A0039082
92
image+89 more

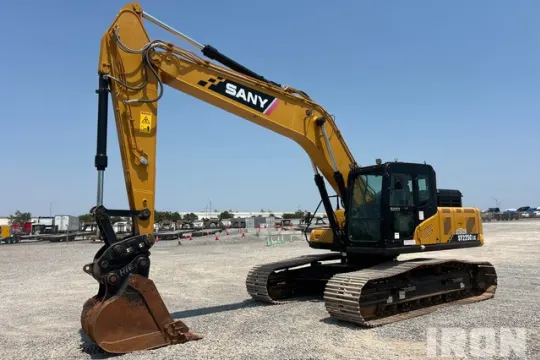

2023 Sany SY225CLC Tracked Excavator

  • 584 hours
  • Ships nationwide
  • United States
  • #A0039082

No longer available

View more Excavators
  • IronClad Assurance

    IronClad Assurance

    Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.

  • No Payments For 90 Days

    Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

About this equipment

The 2023 Sany SY225CLC is a robust tracked excavator designed to meet the demands of modern construction sites. Equipped with a comprehensive array of features, this unit offers an air conditioner for operator comfort, a rear view camera enhancing safety and visibility, and a hydraulic quick coupler that simplifies attachment changes. Its control pattern changer allows operators to adapt the machine to their preferred control style, promoting ease of use and efficiency. Additionally, the excavator comes fitted with 31.5-inch triple grouser track shoes and rock guards, which provide improved stability and protection in rugged environments. The machine has logged 584 hours and includes auxiliary hydraulic plumbing, making it versatile for various attachments and applications.

***Click on the link below for Seller Supplied Warranty Transfer Notice***

Listings may picture attachments not included in the sale. Contact our sales team to confirm features, specs, and machine configuration.

Features

  • Air Conditioner

  • Control Pattern Changer

  • Rear View Camera

  • 2022 US EPA Label

  • Requires Diesel Exhaust Fluid

  • 9 ft 8 in Stick

  • Auxiliary Hydraulic Plumbing

  • 31.5 in Triple Grouser Track Shoes

  • Rock Guards

  • Hydraulic Quick Coupler

  • 39 in Bucket

Specifications

  • Engine Power: 131 hp

  • Displacement: 276 cu in

  • Operating Weight: 51,919 lbs

  • Fuel Capacity: 105.7 gal

  • Max Digging Depth: 21.7 ft

  • Max Reach Along Ground: 31.8 ft

  • Bucket Capacity: 1.3 cu yd

  • Max Dump Height: 22.8 ft

  • Travel Speed: 3.4 mph

  • Track Width: 31.5 in

  • Serial Number / VIN: SY0227CDM1728

  • Hour Meter / Odometer: 584 hrs

  • Exterior Lights: Operational

  • Travel Alarm: Inoperable

  • Horn: Operational

  • Seat Belts: Operational

  • Safety Lock Out/Stop: Operational

  • Current Safety Manual: No

  • Current Operator/Maintenance Manual: Yes

  • Auxiliary Hydraulic Control: Not operationally checked

  • Engine Oil Pressure: The fault indicator shuts off after the engine oil pressure rises.

  • Warning Lights: Operational

  • Gauges: Operational

  • Air Conditioner: Operational

  • Heater: Operational

  • Limited Function Check: The main components are in place and operational as noted.

  • Engine: 2022 US EPA Label, Requires Diesel Exhaust Fluid

  • A/C Compressor: Operational

  • Blow-by (subjective visual observation): No noticeable vapor or pressure

  • Starter: Operational

  • Oil Leaks: No dripping leaks

  • Fuel Leaks: No dripping leaks

  • Cooling System Leaks: No dripping leaks

  • Limited Function Check: The engine started and ran.

  • Limited Function Check: The drivetrain was operational.

  • Auxiliary Hydraulic Plumbing: Capped off at end of stick. Not operationally checked

  • Limited Function Check: The hydraulic system was operational.

  • Limited Function Check: The main components were operational in a limited check.

  • Left Grouser Height: 24 mm

  • Right Grouser Height: 25 mm

  • Quick Coupler: Not operationally checked. Requires a password to access electronic controls.

  • date of analysis: Aug 17, 2026

  • Silicon: 2.77 PPM

  • Tin: 0 PPM

  • Silver: 0 PPM

  • Aluminum: 1.35 PPM

  • Chromium: 0.55 PPM

  • Lead: 0.64 PPM

  • Copper: 5.34 PPM

  • Nickel: 0.19 PPM

  • Iron: 13.72 PPM

  • Glycol: NEG

  • Water: NEG

  • Fuel: <5%

  • Silicon: 0 PPM

  • Tin: 0.71 PPM

  • Aluminum: 0 PPM

  • Chromium: 0 PPM

  • Lead: 0.79 PPM

  • Copper: 4.5 PPM

  • Nickel: 0.06 PPM

  • Iron: 0.63 PPM

  • Glycol: N/A

  • Water: N/A

Digital Glovebox

For your convenience, we've included these documents free to download so you can make the best decision.


Close-up detailed photos

Inspection Report

VIEW
