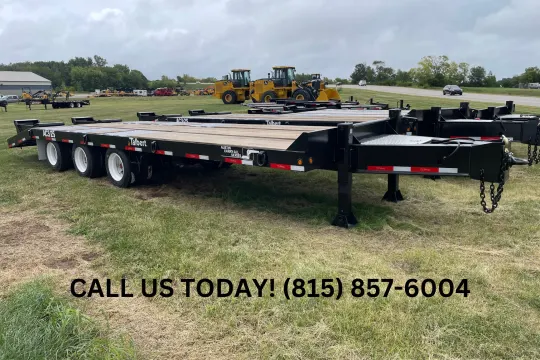

Pintle Eye: Adjustable Pintle Eye (3” ID) w/ 48” Chain & Grab Hooks;

Tongue: 5’6” w/ Lockable Toolbox;

Landing Gear: 2-Speed, 50,000 LB Crank Down Dual Landing Leg, Mounted to Main Beams & Headboard;

Electrical Receptacle: Seven Pin Connector;

Headboard: 8” High Full Width;

Deck Section Design: One Piece Tongue, Main Beam & Beavertail (Cold Formed);

Deck Section Length: 29’ (24’ Flat w/ 5’ Beavertail);

Deck Section Width: 8’6”;

Loaded Deck Height: 32.75”;

Lash Rings: 4 Each Side;

Beavertail: 5’ Self-Cleaning Design w/ Traction Bars (Lumber between Main Beams);

Ramps: Self-Cleaning w/ Spring Assist & Gripper Bars;

Number of Axles: 3;

Axle Capacity: 25,000 LB;

Brakes: 12.25” X 7.5” Air w/ 2S1M ABS, Spring Brakes on Axles 2 & 3;

Tires: Twelve 215/75R17.5 (H) 16PR Radials;

Suspension: First Axle Air Ride Equipped w/ Air Lift Axle, 44,800 LB Hutch Spring on Axles 2 & 3
