Sold As Is, Where Is
This machine does not qualify for Powerhouse Protection coverage.

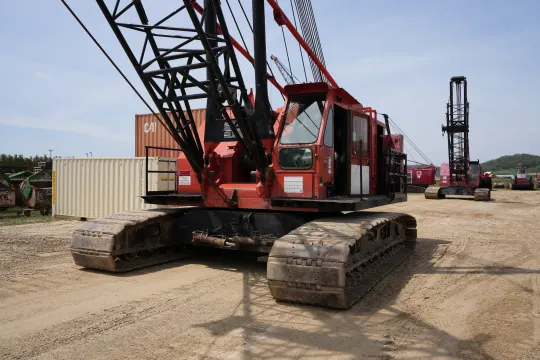

1975 Link-Belt LS338
- 1762 hours
- Ships nationwide
- #A4404312
121
+118 more1975 Link-Belt LS338
- 1762 hours
- Ships nationwide
- #A4404312
Price Reduced
No longer available
No Payments For 90 Days
Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.
About this equipment
The Link Belt LS338 is a powerful crane with a 100-ton capacity, powered by a GM 6-71N Diesel engine. Designed for strength and stability with less overall weight, it has a 4-roller chain and friction clutch gear drive, making it easy to operate and control. This crane is in good condition for its age at the time of inspection. Although it was not load tested during the inspection, its core functions performed well. Check out the inspection report for more details! Listing content, notes, photos, and hours displayed were obtained in May of 2023 and can be confirmed on request.
Features
50' Boom (2 Pieces)
20' Standard Jib (2 Pieces)
Equipped With 3 Drums
*No Load Block*
Specifications
Engine: GM 6-71N - 7.0L - I6 - 171Hp - Diesel
4 Roller Chain Transmission
Friction Clutch Gear Drive
Hydraulic Relief: 1,050 psi
Fluid Capacity: 106 gal
Gradeability: 30%
Track Gauge: 13'6"
Track/Conical Rollers: 10 Track Rollers/Single Idler & Sprocket (per side)
Track Shoes: 38" / 43 Shoes (per side)
Max Capacity: 100 ton rated
Tail Swing: 15'2"
Ground Clearance: 1'2"
Counterweight: 18,680 lbs
Operational Weight: 141,067 lbs
Inspection Summary
Inspected by Boom & Bucket
- 1200+ inspections
- 50+ years experience
- 20+ certifications
What's great
- Clean and dry engine compartment, no active leaks
- Engine starts up with no unusual noises or smoke issues
- Transmission components are in good condition; no unusual noises or vibrations during operation
- Undercarriage components are in good condition; tracks have average amount of life remaining
- Chassis and frame are in good condition; level stance
- Hydraulic lines and fittings are clean and in good condition; no unusual noises during operation
- Hydraulic cylinders are in good condition; no pitting or discoloration, no oil leaks
- Good boom lift, angle and tilt
- Minor cosmetic wear to cabin surfaces; solid floors, panels, and ceiling
- Operator displays and controls are functioning and in good condition
What needs work
- Areas of black oil seen in engine compartment from seepage or spills
- Some electrical wires are loose and dangling
- Exterior body panels show above average wear, including areas of surface rust, body filler, and duct tape
Digital Glovebox
For your convenience, we've included these documents free to download so you can make the best decision.
150+ pt inspection
Close-up detailed photos
Maintenance history
Specifications sheet
Listings may picture specialty attachments not included in the sale. If you have questions about machine configuration, contact our sales team.
