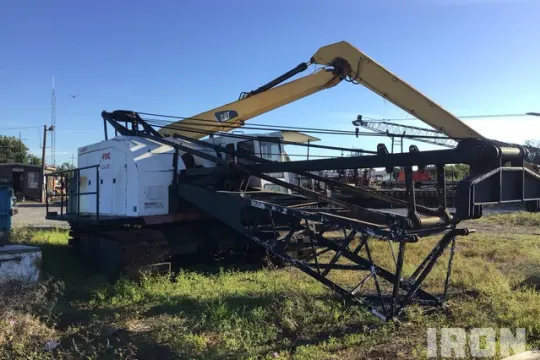

1982 Link-Belt LS-128DLC

110 ft Boom

Auxiliary Hoist

3rd Drum

36 in Track Shoes

Expandable Width Tracks

Fairlead

Serial Number / VIN: 51H2-320C

CE Mark: No CE mark found

Safety Certification Label: Safety Certification Label not legible., 3/1/2022

Load Chart: Not Legible

Travel Alarm: Missing

Horn: Missing

Seat Belts: Not equipped

Current Safety Manual: No

Current Operator/Maintenance Manual: No

Glass: No visible damage

Controls Hydraulic or Air: What could be checked was operational

Load Charts: Posted on cab wall, Not all is legible

Oil Pressure: The gauge registers in the operating range. Gauge is on engine

Gauges: Amp and temp gauges are inoperable

Hoist Brakes: Not checked

Limited Function Check: The main components are in place and operational as noted. Not all operations were checked

Engine: No US EPA Label Present

Blow-by (subjective visual observation): Minor

Starter: Operational

Radiator: Coolant level is low, none seen in top

Oil Leaks: Rear of engine

Fuel Leaks: No dripping leaks

Cooling System Leaks: No dripping leaks Engine was only ran to show it starts and runs was not brought to operating temp

Limited Function Check: The engine started and ran.

Steering Clutches (Crane): Slips

Drive Chains/Sprockets: Not visible

Limited Function Check (Drivetrain-Crawler Crane): The drivetrain functioned properly without a load., Did move and did steer, limited operation, would not climb out of the depression it is sitting in

Valves: Dripping leak, What was checked was operational

Hoses (Hydraulic): Leaks everywhere

Main Hoist: Not checked

Auxiliary Hoist: No cable, not checked

Limited Function Check: What could be tested did operate

Hoist Drums: Mechanical Draw Works, Not checked

Boom Drums: Mechanical Draw Works

Hoist and Boom Clutches: Only boom was tested

Main Boom Pins: Rust around pins and on arms

Pendant Line (Boom Tension Line): Cable Type

Point Sheaves: Do not turn freely

Boom Point Section: Rust

Gantry/Mast: Rust at pins has play

Boom Length: 110 ft overall length, 20’ base , 3 - 20’ sections on ground, 1 - 10’ section mounted to point section and point is 20’ Sections, Only has 20 ft base section mounted

Boom Angle Indicator: Not tested

Turntable Bearing: Could not be checked

Swing Drive: Operational, Swing brakes were not tested

Limited Function Check: The main components were operational with movement as indicated, The main components were operational with damage as noted..

Left Track Pads: Only parts are visible with heavy rust

Right Track Pads: Only parts are visible with heavy rust

Main Load Block: None Supplied

Overhaul Ball: None Supplied

Fairlead: Rust and not checked

Third Drum: Not checked

Counterweights: Heavy rust
