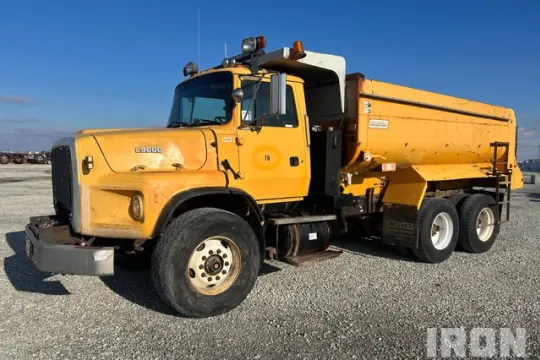

1996 Ford L9000

Cat 3406 6 Cylinder 14.6 L Diesel 350 hp Engine

Air Conditioner

9-Speed Manual Transmission

Differential Lock

18000 lb Front Axle

40000 lb Rears

58000 lb GVWR

425/65R22.5 Front Tires

11R22.5 Rear Tires

Dual Steering Boxes

Double Frame

Spring over Walking Beam Suspension

185 in Wheelbase

PTO

Henderson 14 ft Long x 4 ft High Steel Body

Round Bottom

Pintle Hitch

Slope Board Bracket & Side Unload Auger

Serial Number / VIN: 1FDZY90X6TVA15252

Hour Meter / Odometer: 205172 mi

Motor Vehicle Safety Standards Label: Yes

Exterior Lights: Operational

Steer Axle: T-LI-D0: 13/32"|T-RI-D0: 13/32"|Covered: B-R-D|Covered: B-L-D|Steel: T-RI-D|Steel: T-LI-D

Rear Axle: T-LO-D0: 14/32"|T-LI-D0: 12/32"|T-RI-D0: 19/32"|T-RO-D0: 19/32"|Drum: B-L-D|Drum: B-R-D|Steel: T-RI-D|Steel: T-RO-D|Steel: T-LI-D|Steel: T-LO-D

Rear Axle: T-LO-D0: 15/32"|T-LI-D0: 13/32"|T-RI-D0: 17/32"|T-RO-D0: 18/32"|Drum: B-R-D|Drum: B-L-D|Steel: T-RI-D|Steel: T-RO-D|Steel: T-LI-D|Steel: T-LO-D

Emissions Information: No US EPA Label Present

A/C Compressor: Belt missing

Blow-by (subjective visual observation): No noticeable vapor or pressure

Starter: Operational

Air Compressor: Operational

Fuel System: Operational

Oil Leaks: No dripping leaks

Fuel Leaks: No dripping leaks

Cooling System Leaks: No dripping leaks

Limited Function Check: The engine started and ran.

Window Controls: Both Manual

Seat Belts: Operational

Horn: Air horn operational, Electric horn inoperable

Oil Pressure: The gauge registers in the operating range.

Warning Lights: Operational

Gauges: Operational

Brake Control: Operational

Clutch: Engages

Air Conditioner: Inoperable, The ambient temperature is too cold to check.

Heater: Operational

Limited Function Check: The main components are in place and operational as noted.

Transmission: Operational

Power Take Off: Operational

PTO Pump: Operational

Limited Function Check: The drivetrain was operational.

Frame Condition: Rust issues

Suspension Bushings: Worn out

Cylinder(s): Dripping leak

Limited Function Check: The hydraulic system was operational.

Limited Function Check - Brakes: The brake system functioned, stopping and holding the machine.

Bed Body: Auger and vibrator inoperable

Tailgate Latch: Not operationally checked

External Electrical / Air Connections: Not operationally checked

Pintle Hitch: Not operationally checked

date of analysis: Dec 16, 2025

Silicon: 0.04 PPM

Tin: 1.81 PPM

Silver: 0 PPM

Aluminum: 0.71 PPM

Chromium: 0.02 PPM

Lead: 0.14 PPM

Copper: 1.4 PPM

Nickel: 1.03 PPM

Iron: 11.77 PPM

Glycol: NEG

Water: NEG

Fuel: <5%
