1999 Caterpillar 143H

  • 11630 hours
  • Ships nationwide
  • USA
  • #A6883782
262
image+259 more

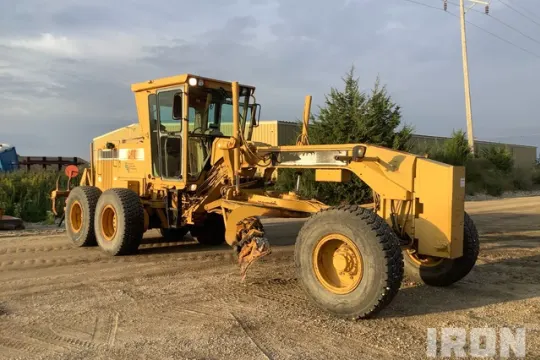

1999 Cat 143H AWD Motor Grader

  • 11630 hours
  • Ships nationwide
  • United States
  • #A6883782
Asking Price$80,000 USD
Est. Loan Payment

Price excludes taxes, fees, and shipping

  • IronClad Assurance

    IronClad Assurance

    Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.

  • No Payments For 90 Days

    Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

About this equipment

The 1999 Caterpillar 143H Motor Grader combines robust construction capability with comfort, designed for varied grading tasks. Featuring an enclosed cab equipped with an air conditioner, this unit enhances operator comfort for prolonged productivity, especially under challenging weather conditions. The inclusion of a differential lock helps to ensure superior traction and power distribution, vital for efficient grading on uneven terrains. Its 14 ft / 4.27 m moldboard is sizeable enough to tackle a wide range of grading projects, from road construction to land leveling. The rear scarifier adds versatility, allowing for effective ground penetration and material mixing, essential for preparing surfaces before paving. With 11,630 hours, the unit has been utilitized extensively, promising seasoned reliability, supported by durable 17.5R25 tires that contribute to its operational stability and mobility.

Listings may picture attachments not included in the sale. Contact our sales team to confirm features, specs, and machine configuration.

Features

  • Enclosed Cab

  • Air Conditioner

  • Differential Lock

  • 14 ft / 4.27 m Moldboard

  • Rear Scarifier

  • 17.5R25 Tires

Specifications

  • Engine Power: 185 hp

  • Net Power Gear 5-6: 165 hp

  • Displacement: 10.5 L

  • Top Forward Speed: 27.4 mph

  • Top Reverse Speed: 21.6 mph

  • Max Operation Weight - Front Axle: 9480 lb

  • Max Operation Weight - Rear Axle: 24140 lb

  • Total Max Operation Weight: 33620 lb

  • Fuel Capacity: 90 gal

  • Oil System Fluid Capacity: 5.9 gal

  • Cooling System Fluid Capacity: 10.5 gal

  • Transmission Fluid Capacity: 16.9 gal

  • Tandem Housing Fluid Capacity: 50.2 gal

  • Front Axle/Diff Fluid Capacity: 15.9 gal

  • Circle Gearbox Fluid Capacity: 1.8 gal

  • Serial Number / VIN: 1AL00669

  • Hour Meter / Odometer: 11630 hrs

  • Exterior Lights: Operational

  • Travel Alarm: Operational

  • Horn: Operational

  • Seat Belts: Operational

  • Current Safety Manual: No

  • Current Operator/Maintenance Manual: No

  • Engine Oil Pressure: The fault indicator shuts off after the engine oil pressure rises.

  • Warning Lights: Operational

  • Gauges: Operational

  • Air Conditioner: The ambient temperature is too cold to check

  • Heater: Operational

  • Limited Function Check: The main components are in place and operational as noted.

  • A/C Compressor: In place; ambient temperature too cold to check operation

  • Blow-by (subjective visual observation): Minor

  • Starter: Operational

  • Oil Leaks: No dripping leaks

  • Limited Function Check: The engine started and ran.

  • Transmission: Operational

  • Limited Function Check: The drivetrain was operational.

  • Articulation Cylinders: Dripping leak on the left cylinder

  • Limited Function Check: The hydraulic system was operational.

  • Limited Function Check (grader): The main chassis components were operational in a limited check.

  • Brake Lines/Hoses: Not operationally checked

  • Park Brake: Stopped the machine while rolling

  • Limited Function Check - Brakes: The brake system functioned, stopping and holding the machine.

  • Tire Brands: Titan

Digital Glovebox

For your convenience, we've included these documents free to download so you can make the best decision.


Close-up detailed photos

Inspection Report
