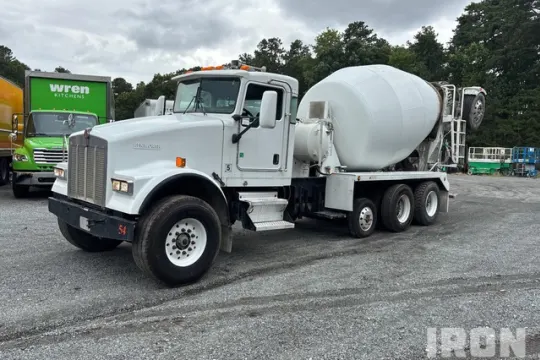

2005 Kenworth W900 10x4 Mixer Truck

Cummins ISM 330 6 Cylinder 10.8 L Diesel 330 hp Engine

2004 US EPA Label

3441 Engine hrs

Air Conditioner

Cruise Control

Allison 4500 6-Speed Automatic Transmission

Differential Lock

19995 lb Front Axle

68088 lb Rears

Meritor RT-46-160 Drive Axles

5.63:1 Axle Ratio

80000 lb GVWR

Air Ride Cab

Aluminum Front Wheels

425/65R22.5 Front Tires

11R22.5 Rear Tires

Steerable Air Lift Pusher Axle

Trailing Tag Axle

Dual Steering Boxes

Chalmers Suspension

248 in Wheelbase

PTO

McNeilus 11 cyd Mixer Unit

3 Removable Chutes

Remote Control w/Cord

Engine Type: Diesel

Engine Power: 475 hp

Engine Manufacturer: Caterpillar

Transmission: 18-speed Manual

Fuel Capacity: 150 gal

Axle Configuration: 6x4

Wheelbase: 260 in

Gross Vehicle Weight: 52,000 lbs

Front Axle Weight: 12,000 lbs

Rear Axle Weight: 40,000 lbs

Suspension Type: Air Ride

Cab Type: Sleeper Cab

Sleeper Size: 72 in

Serial Number / VIN: 1NKWL0EX55J087823

Hour Meter / Odometer: 259157 mi

Indication of Additional Hours: New transmission note replaced at 220267 miles on 08/17/2020

Motor Vehicle Safety Standards Label: Yes

Exterior Lights: Operational

Steer Axle: T-LI-D0: 8/32"|T-RI-D0: 15/32"|Drum: B-R-D|Drum: B-L-D|Aluminum: T-RI-D|Aluminum: T-LI-D

Rear Axle: T-LI-D0: 15/32"|Aluminum: T-LI-D|Covered : B-L-D|Covered : B-R-D|T-RI-D0: 10/32"|Aluminum: T-RI-D

Rear Axle: T-LO-D0: 10/32"|T-LI-D0: 11/32"|T-RI-D0: 9/32"|T-RO-D0: 15/32"|Drum: B-R-D|Drum: B-L-D|Steel: T-LI-D|Steel: T-LO-D|Steel: T-RI-D|Steel: T-RO-D

Rear Axle: T-LO-D0: 19/32"|T-LI-D0: 8/32"|T-RI-D0: 9/32"|T-RO-D0: 8/32"|Drum: B-R-D|Drum: B-L-D|Steel: T-LO-D|Steel: T-RI-D|Steel: T-LI-D|Steel: T-RO-D

Rear Axle: T-LI-D0: 16/32"|Aluminum: T-LI-D|Covered : B-L-D|Covered : B-R-D|T-RI-D0: 16/32"|Aluminum: T-RI-D

Emissions Information: 2004 US EPA Label

A/C Compressor: In place; ambient temperature too cold to check operation

Blow-by (subjective visual observation): Visible

Starter: Operational

Air Compressor: Operational

Fuel System: Operational

Oil Leaks: Side of engine, Front of engine, Oil Pan

Fuel Leaks: No dripping leaks

Cooling System Leaks: No dripping leaks

Limited Function Check: After jump starting, the engine ran.

Engine Hours: 3441 Engine hrs

Window Controls: Left Manual / Right Power

Seat Belts: Operational

Horn: Air horn weak, Electric horn operational

Oil Pressure: The gauge registers in the operating range.

Warning Lights: Operational, Check engine light stays on

Gauges: Operational

Brake Control: Operational

ECM Miles: Reader will not display ECM mileage

Air Conditioner: Not operationally checked

Heater: Not operationally checked, Controls missing

Limited Function Check: The main components are in place and operational as noted.

Steering Components: Dripping leak from steering box

Transmission: Operational

PTO Pump: Operational, Dripping leak

Non-Driven Drop Axle (1): Steerable

Rear Drive Axle: Dripping Leak

Non-Driven Rear Drop Axle: Steerable

Limited Function Check: The drivetrain was operational without a load.

Park Brake: Weak, Held against power, When bridge master was lowered asset moved while parking brake was engaged. Parking brake held machine while bridge master stowed.

Limited Function Check - Brakes: The service brakes are operational, The park brake is weak.

Hydraulic Tank: Low fluid level

Limited Function Check: The hydraulic system was operational.

Drum: No visible damage

Chutes: Steel chutes

Chute Rotator: Manual

Water Tank: Not operationally checked

Limited Function Check (Mixer): Appears functional in a limited test of forward and reverse rotation without a load.
