IronClad Assurance
Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.
Price excludes taxes, fees, and shipping
Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.
Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

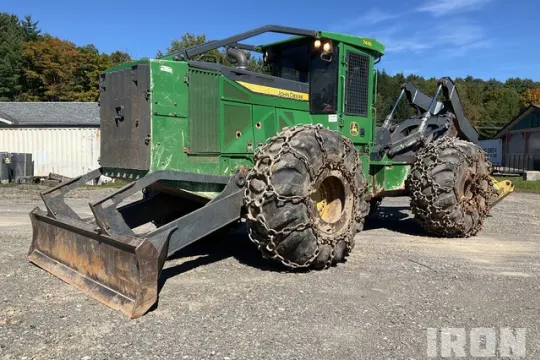

The 2017 John Deere 748L is a versatile piece of forestry equipment designed to handle demanding environments and tough applications. The integration of an air conditioner, joystick steering, and an air ride seat ensure operator comfort and greater control, customizing to the needs of intensive forestry operations. This unit is equipped with a robust Deere integrated Double Arch Grapple and a winch, enhancing its capability for log manipulation and effective terrain navigation. Additional features such as a rear-view camera, blade, and screens contribute to safety and operational efficiency. The machine also comes fitted with durable tires accompanied by two pairs of chains, providing excellent traction and stability in a variety of ground conditions. With 10,238 hours, this John Deere 748L has proven its reliability and remains poised for substantial forestry tasks.
Air Conditioner
Joystick Steering
Air Ride Seat
Screens
Two-Position Station
Rear-View Camera
Blade
Deere integrated Double Arch Grapple
Winch
Tires w/2 Pairs of Chains
Engine Power: 188 hp
Displacement: 414 cu in
Fuel Capacity: 78.5 gal
Hydraulic System Fluid Capacity: 24 gal
Operating Weight: 32,000 lbs
Max Forward Speed: 15.5 mph
Max Reverse Speed: 15.5 mph
Wheelbase: 128.9 in
Height to Top of Cab: 126 in
Length with Bucket on Ground: 293 in
Width Over Tires: 106 in
Ground Clearance: 24 in
Grapple Capacity: 1.25 sq yd
Serial Number / VIN: 1DW748LXPHF683262
Hour Meter / Odometer: 10238 hrs
Exterior Lights: Some not operational, Grill, 2 of rear lights are not operational
Horn: Operational
Seat Belts: Operational
Safety Lock Out/Stop: Operational
Current Safety Manual: No
Current Operator/Maintenance Manual: No
Engine Oil Pressure: The fault indicator shuts off after the engine oil pressure rises.
Warning Lights: Operational, STOP light stays on, Customer states: light has been flashing since purchase dealer has been out, and tried several times to rectify. HVC Code
Gauges: Operational
Air Conditioner: Inoperable
Heater: Operational, Not operationally checked
Limited Function Check: The main components are in place and operational as noted.
Engine: Replacement engine. Exempt
A/C Compressor: In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation): Minor
Starter: Operational
Oil Leaks: No dripping leaks
Fuel Leaks: No dripping leaks
Cooling System Leaks: No dripping leaks
Limited Function Check: The engine started and ran.
Transmission: Operational
Limited Function Check: The drivetrain was operational.
Limited Function Check: The hydraulic system was operational. Leaks from unknown source.
Limited Function Check: The main chassis components were operational in a limited check.
Articulating Center Pins: Moderate movement
Brake Type: Hydraulic
Limited Function Check - Brakes: The brake system functioned, stopping and holding the machine.
Tire Brands: Left Front: Primex, Left Rear: not legible appears to be Primex, Right Rear: Firestone , Right Front: Primex
Winch: Operational, Make: Deere Integrated
For your convenience, we've included these documents free to download so you can make the best decision.
