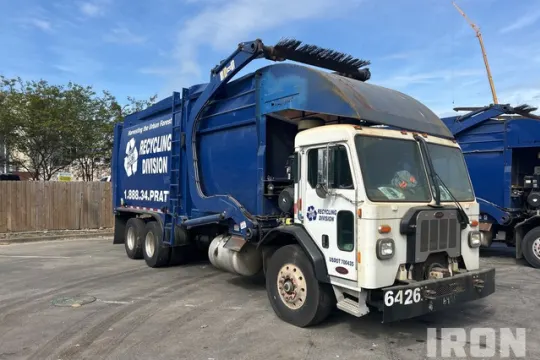

2020 Peterbilt 520 6x4 Front Loader Waste Collection Truck

Cummins ISX12 6 Cylinder 11.9 L Diesel 350 hp Engine

2018 US EPA Label

Requires Diesel Exhaust Fluid

1242.4 Engine hrs

Air Conditioner

Cruise Control

Power Windows

Engine Brake

Allison 4500 6-Speed Automatic Transmission

Differential Lock

20000 lb Front Axle

46000 lb Rears

Meritor RT-40-160 Drive Axles

5.38:1 Axle Ratio

66000 lb GVWR

Aluminum Wheels

315/80R22.5

Dual Steering Boxes

Double Frame

Hendrickson Haulmaax Rubber over Walking Beam Suspension

228 in Wheelbase

PTO

Bridgeport Collection Body

Engine Power: 380 hp

Engine Type: PACCAR PX-9

Displacement: 8.9 L

Fuel Type: Diesel

Transmission: Allison 3000 RDS 6-speed automatic

Drive Configuration: 6x4

Maximum Torque: 1250 lb-ft

Front Axle Capacity: 20,000 lbs

Rear Axle Capacity: 46,000 lbs

Wheelbase Options: 210 to 280 inches

Cab Configuration: Low Cab Forward

Total GVWR: 66,000 lbs

Fuel Tank Capacity: up to 80 gallons

Brake System: Air Brakes with ABS

Tire Size: 315/80R22.5

Serial Number / VIN: 3BPDL70X8LF106426

Hour Meter / Odometer: 136142 mi

Motor Vehicle Safety Standards Label: Yes

Exterior Lights: Operational

Model Description: Front Loader

Steer Axle: T-LI-D0: 15/32"|T-RI-D0: 24/32"|Drum: B-L-D|Drum: B-R-D|Aluminum: T-LI-D|Aluminum: T-RI-D

Rear Axle: T-LO-D0: 20/32"|T-LI-D0: 19/32"|T-RI-D0: 10/32"|T-RO-D0: 14/32"|Drum: B-L-D|Drum: B-R-D|Aluminum: T-LO-D|Aluminum: T-LI-D|Aluminum: T-RI-D|Aluminum: T-RO-D

Rear Axle: T-LO-D0: 18/32"|T-LI-D0: 21/32"|T-RI-D0: 12/32"|T-RO-D0: 14/32"|Drum: B-L-D|Drum: B-R-D|Aluminum: T-LO-D|Aluminum: T-LI-D|Aluminum: T-RI-D|Aluminum: T-RO-D

Emissions Information: 2018 US EPA Label, Requires Diesel Exhaust Fluid

A/C Compressor: Operational

Blow-by (subjective visual observation): Visible

Starter: Operational

Air Compressor: Operational

Fuel System: Operational

Oil Leaks: Oil Pan

Fuel Leaks: No dripping leaks

Cooling System Leaks: No dripping leaks

Limited Function Check: After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting.

Engine Hours: 1242.4 Engine hrs

Window Controls: Both Power

Seat Belts: Operational

Horn: Air horn operational, Electric horn operational

Oil Pressure: The fault indicator shuts off after the engine oil pressure rises.

Warning Lights: Operational

Gauges: Operational

Brake Control: Operational

Engine Brake: Operational

Air Conditioner: Operational

Heater: Operational

Limited Function Check: The main components are in place and operational as noted.

Transmission: Operational

PTO Pump: Operational

Limited Function Check: The drivetrain was operational.

Cylinder(s): Bed lift would not engage inside the cab

Limited Function Check: The hydraulic system was operational.

Park Brake: Held against power

Limited Function Check - Brakes: The brake system functioned, stopping and holding the machine.

Bed Body: Top of the body is damaged

Tailgate: Tailgate will not open, the locks will not release

Ejector Plate: Ejector plate is damaged

Limited Function Check: Multiple hydraulic functions are inoperable.

date of analysis: Apr 06, 2026

Silicon: 0.6 PPM

Tin: 0.04 PPM

Silver: 0.17 PPM

Aluminum: 2.2 PPM

Chromium: 0.63 PPM

Lead: 1.18 PPM

Copper: 4.73 PPM

Nickel: 0.08 PPM

Iron: 12.18 PPM

Glycol: NEG

Water: NEG

Fuel: <5%
