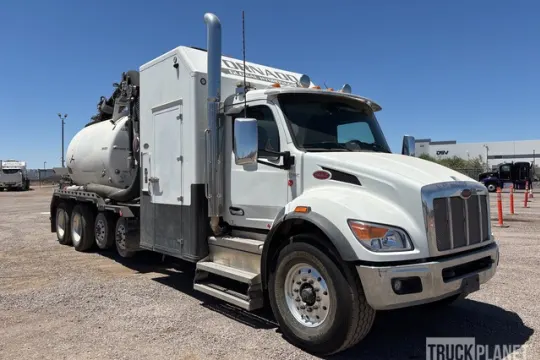

2024 Tornado F3 ECO-LITE on 2025 Peterbilt 548 10x4 Vacuum Excavator Truck

Paccar PX-9 6 Cylinder Diesel Engine

2024 US EPA Label

Requires Diesel Exhaust Fluid

1019.5 Engine hrs

Air Conditioner

Cruise Control

Power Windows

Engine Brake

Allison 3000 Automatic Transmission

Differential Lock

20000 lb Front Axle

44000 lb Rears

Meritor MT-44-14X Drive Axles

5.29:1 Axle Ratio

62000 lb GVWR

Air Ride Cab

Aluminum Wheels

425/65R22.5 Front Tires

11R24.5 Rear Tires

2 Steerable Air Lift Pusher Axle

Dual Steering Boxes

Air Trac Air Ride Suspension

323 in Wheelbase

PTO

Steel Debris Tank

1250 gal Fresh Water Tank

Hydraulic Lift Tailgate

Wash Down System

Hydraulic Tailgate Locks

17 ft Telescopic Boom

8 in Suction Hose

Cat Hydraulic Driven Pump

Robuschi 125 Blower w/ 405 hrs

Dynablast HV690FLS-12VTORN 690000 BTU Boiler w/ 10 hrs

Cordless Remote Control

Engine Power: 131 hp

Displacement: 276 cu in

Operating Weight: 14,300 lbs

Max Dig Depth: 15.1 ft

Max Loading Height: 16.4 ft

Fuel Capacity: 66 gal

Hydraulic System Fluid Capacity: 40 gal

Shoe Size: 24 in

Track Width: 7.2 ft

Travel Speed: 3 mph

Bucket Capacity: 0.5 cu yd

Serial Number / VIN: 2NP8XJ0X6SM714845

Frame Stamp Serial Number/VIN Photo: No frame stamp could be located , used build sheet for verification

Hour Meter / Odometer: 7920 mi

Motor Vehicle Safety Standards Label: Yes

Exterior Lights: Operational

Steer Axle: T-LI-D0: 20/32"|T-RI-D0: 20/32"|Drum: B-L-D|Drum: B-R-D|Aluminum: T-LI-D|Aluminum: T-RI-D

Rear Axle: T-LI-D0: 16/32"|Aluminum: T-LI-D|Covered : B-L-D|Covered : B-R-D|T-RI-D0: 16/32"|Aluminum: T-RI-D

Rear Axle: T-LO-D0: 20/32"|T-LI-D0: 20/32"|T-RI-D0: 20/32"|T-RO-D0: 23/32"|Drum: B-L-D|Drum: B-R-D|Aluminum: T-LO-D|Aluminum: T-LI-D|Aluminum: T-RI-D|Aluminum: T-RO-D

Rear Axle: T-LO-D0: 20/32"|T-LI-D0: 20/32"|T-RI-D0: 17/32"|T-RO-D0: 20/32"|Drum: B-L-D|Drum: B-R-D|Aluminum: T-LO-D|Aluminum: T-LI-D|Aluminum: T-RI-D|Aluminum: T-RO-D

Emissions Information: 2024 US EPA Label, Requires Diesel Exhaust Fluid

A/C Compressor: Operational

Blow-by (subjective visual observation): No noticeable vapor or pressure

Starter: Operational

Air Compressor: Operational

Fuel System: Operational

Oil Leaks: No dripping leaks

Fuel Leaks: No dripping leaks

Cooling System Leaks: No dripping leaks

Limited Function Check: After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting.

Engine Hours: 1019.5 Engine hrs

Window Controls: Both Power

Seat Belts: Operational

Horn: Air horn operational, Electric horn operational

Oil Pressure: The gauge registers in the operating range.

Warning Lights: Operational, Check engine light stays on

Gauges: Operational

Brake Control: Operational

Engine Brake: Not operationally checked

PTO Control: Operational

ECM Miles: 7961 ECM mi

Air Conditioner: Operational

Heater: Not operationally checked

Limited Function Check: The main components are in place and operational as noted.

Transmission: Operational

Power Take Off: Operational

PTO Pump: Operational

Non-Driven Drop Axle (1): Steerable

Non-Driven Drop Axle (2): Steerable

Limited Function Check: The drivetrain was operational without a load.

Limited Function Check - Brakes: The service brakes are operational, The park brake is operational.

Vacuum Intake Hose: 8 inches

Vacuum Drive: Direct Drive

Debris Tank: Hydraulic Door Locks

Water Tank: Not operationally checked

Pressure Pump - Water: PTO Powered

Remote Control: Operational

Limited Function Check: The main chassis components functioned when checked without a load.

Aluminum: 0 PPM

Chromium: 0 PPM

Copper: 6.36 PPM

date of analysis: Jul 10, 2026

Fuel: N/A

Glycol: N/A

Iron: 0 PPM

Lead: 1.91 PPM

Nickel: 0.08 PPM

Silicon: 3 PPM

Silver: 0.01 PPM

Tin: 0.08 PPM

Water: N/A

Silicon: 0.28 PPM

Tin: 0.17 PPM

Silver: 0 PPM

Aluminum: 0.73 PPM

Chromium: 0.24 PPM

Lead: 1.34 PPM

Copper: 1.16 PPM

Nickel: 0.47 PPM

Iron: 8.72 PPM

Glycol: NEG

Water: NEG

Fuel: <5%
