1990 American 8470

  • 99 miles
  • Ships nationwide
  • #A0351617
105
image+102 more

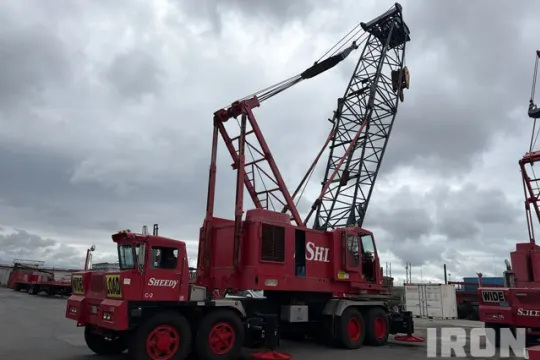

1990 American 8470 180 ton Lattice-Boom Truck Crane

  • 99 miles
  • Ships nationwide
  • #A0351617
Asking Price$200,000
Est. Loan Payment

Price excludes taxes, fees, and shipping

  • No Payments For 90 Days

    Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

  • IronClad Assurance

    IronClad Assurance

    Inspected by IronPlanet. Your purchase is protected by our IronClad Assurance.

About this equipment

1990 American 8470 180 ton Lattice-Boom Truck Crane Hours and condition are captured at the time of listing and are subject to change. Please contact a representative about this piece of equipment for an updated reading.

Features

AI-Generated: Verify machine specs, features, and operability prior to purchasing.

  • Eaton Fuller 15 Speed Manual Transmission

  • Cummins 6 Cylinder Diesel Carrier Engine

  • Load Moment Indicator

  • Cummins Diesel Upper Engine

  • 280 ft Boom

  • 100 ft Auxiliary Jib

  • Overhaul Ball

Specifications

AI-Generated: Verify machine specs, features, and operability prior to purchasing.

  • Engine Power: 131 hp

  • Displacement: 276 cu in

  • Fuel Type: Diesel

  • Transmission Type: Manual

  • Number of Gears: 5

  • Drive Configuration: 4x2

  • Maximum Speed: 75 mph

  • Service Body Material: Steel

  • Tool Storage: Multiple compartments

  • Payload Capacity: 3,000 lbs

  • Towing Capacity: 7,500 lbs

  • Wheelbase: 138 in

  • Overall Length: 210 in

  • Height: 72 in

  • Gross Vehicle Weight Rating: 9,000 lbs

  • Serial Number / VIN: 9006AC3529

  • Hour Meter / Odometer: 99 mi

  • Indication of Additional Hours: Age and condition

  • Exterior Lights: Operational, Some not operational, Clearance markers inop. lights are not operational

  • Safety Certification Label: Safety Certification Label not legible.

  • Safety Certification Report: Safety Certification Report Not Available

  • Load Chart: Yes

  • Travel Alarm: Operational

  • Horn: Operational

  • Seat Belts: Operational

  • Current Safety Manual: No

  • Current Operator/Maintenance Manual: Yes

  • Engine Oil Pressure: The gauge registers in the operating range.

  • Warning Lights: Operational, Unknown errors. Engine coolant temp too high. light stays on

  • Gauges: Operational

  • Heater: Not operationally checked

  • Limited Function Check: The main components are in place and operational as noted.

  • Emissions Status: No US EPA Label Present

  • Starter: Operational

  • Air Compressor: Operational

  • Fuel System: Operational

  • Oil Leaks: No dripping leaks

  • Fuel Leaks: No dripping leaks

  • Cooling System Leaks: No dripping leaks

  • Limited Function Check: The engine started and ran.

  • Transmission: Operational

  • Clutch: Engages

  • PTO Pump: Operational

  • Limited Function Check - Carrier: The drivetrain was operational without a load.

  • Brake Type: Air

  • Park Brake: Held against power, Stopped the machine while rolling

  • Limited Function Check - Brakes: The brake system functioned, stopping and holding the machine.

  • Tire Size: All of the tires are the same size, 14.00-24 Front tires, 14.00-24 Rear tires

  • Tread Depth: LF 21 /32", LR 20 /32", LMI 21 /32", LMO 20 /32", LRI 17 /32", LRO 20 /32", RRI 17 /32", RRO 18 /32", RMI 18 /32", RMO 16 /32", RR 17 /32", RF 15 /32"

  • Limited Function Check: The hydraulic system was operational.

  • Hour Meter Reading: 9750 Hours

  • Glass: No visible damage

  • Load Moment Indicator: Not operationally checked with a load., Wylie, W1257

  • Load Charts: Chart book in cab

  • Drum Rotation Indicator: Operational

  • Rear Engine - Function: The engine runs.

  • Blow by @ idle (subjective visual observation): No engine access.

  • Oil Leaks: No dripping leaks

  • Fuel Leaks: No dripping leaks

  • Cooling System Leaks: No dripping leaks

  • Limited Function Check (Engine): The engine started and ran.

  • Hoist Drums: Hydraulic Operation

  • Pendant Line (Boom Tension Line): Cable Type

  • Boom Length: 280 ft 0 in overall length

  • JIB Length: 100 ft 0 in overall length

  • Boom Angle Indicator: Not equipped

  • Swing Drive: Operational

  • Limited Function Check: The main chassis components functioned when checked without a load.

Digital Glovebox

For your convenience, we've included these documents free to download so you can make the best decision.


Close-up detailed photos

Inspection Report

VIEW
Listings may picture specialty attachments not included in the sale. If you have questions about machine configuration, contact our sales team.
